DTC B10E7-11; IG1 Relay Circuit Malfunction: Notes
DTC B10E7-11; IG1 RELAY CIRCUIT MALFUNCTION - DETECTION CONDITION AND POSSIBLE CAUSES
| Description |
IG1 relay circuit malfunction |
| Detection condition |
- Start stop unit detects the voltage from the IG1 relay output monitor as less than 2.5 V for 0.5 s or more while the engine is not being cranked with the ignition switched ON (engine off or on).
|
| Fail-safe |
Not applicable |
| Possible cause |
- IG1 relay malfunction
- Start stop unit connector or terminal malfunction

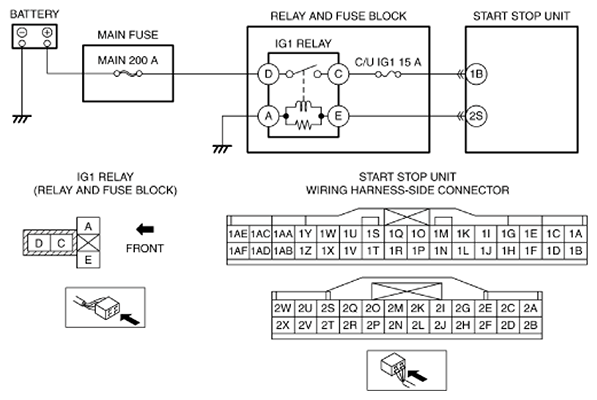

- Short to ground in wiring harness between IG1 relay terminal E and start stop unit terminal 2S
- Start stop unit malfunction
|
|
|
