DTC B10D3-23; Request Switch (RF) Circuit Malfunction: Notes
DTC B10D3-23; REQUEST SWITCH (RF) CIRCUIT MALFUNCTION - DETECTION CONDITION AND POSSIBLE CAUSES
| Description |
Request switch (RF) circuit malfunction |
| Detection condition |
- Start stop unit detected any of the following conditions at a vehicle speed of 5 km/h {3 mph} or more.
- The request switch (RF) is continuously ON for 2 min or more.
- The request switch (RF) was ON 7 times.
|
| Fail-safe |
Not applicable |
| Possible cause |
- Front outer handle (RH) connector or terminal malfunction
- LF control unit connector or terminal malfunction

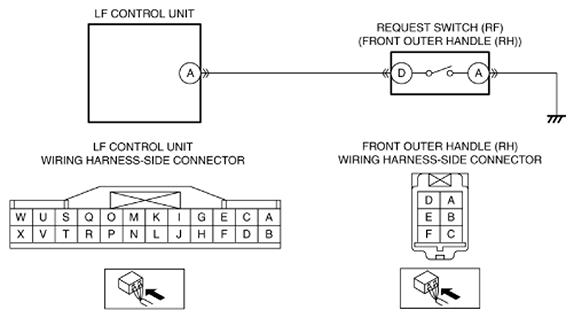

- Short to ground in wiring harness between LF control unit terminal A and front outer handle (RH) terminal D
- Request switch (RF) malfunction
- LF control unit malfunction
- Start stop unit malfunction
|
|
|
