With Advanced Keyless Entry System
DTC B10C9-1F; KEYLESS ANTENNA (INTERIOR, CENTER) CIRCUIT MALFUNCTION - DETECTION CONDITION AND POSSIBLE CAUSES
| Description |
Keyless antenna (interior, front) circuit malfunction |
| Detection condition |
- Start stop unit detects an open circuit or short to ground in the keyless antenna (interior, front) circuit with the ignition switched off.
|
| Fail-safe |
- Inhibits the door lock/unlock control using the advanced keyless entry system.
|
| Possible cause |
- Keyless antenna (interior, front) connector or terminal malfunction
- LF control unit connector or terminal malfunction

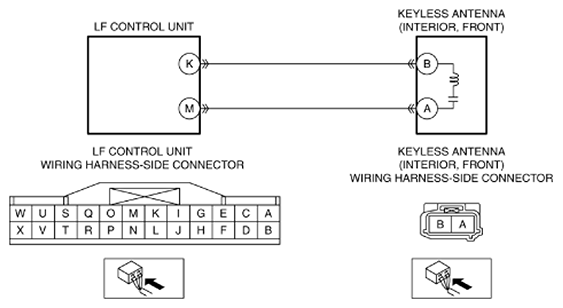

- Short to ground in wiring harness between the following terminals:
- LF control unit terminal K-Keyless antenna (interior, front) terminal B
- LF control unit terminal M-Keyless antenna (interior, front) terminal A
- Open circuit in wiring harness between the following terminals:
- LF control unit terminal K-Keyless antenna (interior, front) terminal B
- LF control unit terminal M-Keyless antenna (interior, front) terminal A
- LF control unit malfunction
- Keyless antenna (interior, front) malfunction
- Start stop unit malfunction
|
|
|
