Windshield Wiper Blade

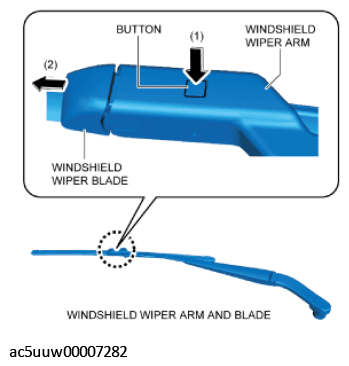

While pressing the button in the direction of arrow (1) shown in the figure, pull the windshield wiper blade in the direction of arrow (2) and detach the windshield wiper blade from the windshield wiper arm.

Fig 1: Pulling Windshield Wiper Blade
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- If the windshield wiper arm end is placed directly on the windshield after removing the windshield wiper blade, it could scratch the windshield. If the windshield wiper arm end is to be placed on the windshield, place it on a rag to protect the windshield.
Fig 2: Placing Rag To Protect Windshield Wiper Arm
Courtesy of MAZDA MOTORS CORP.
Remove the windshield wiper blade.

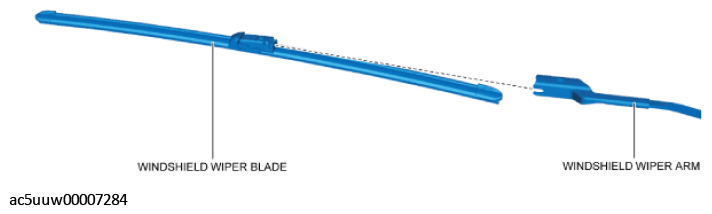

Fig 3: Removing Windshield Wiper Blade
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
