Windshield Washer Hose A (Front Fender): Notes

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the front over fender.(See FRONT OVER FENDER REMOVAL/INSTALLATION .)
  3. Remove the mudguard (RH). (See MUDGUARD REMOVAL/INSTALLATION .)
  4. Disconnect the windshield washer hose A from the washer motor.

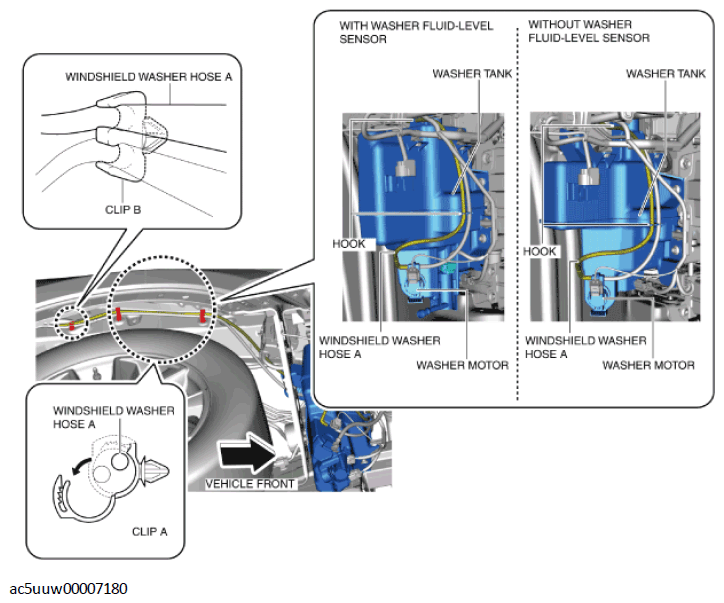

    Fig 1: Disconnecting Windshield Washer Hose A From Washer Motor
    G11426849Courtesy of MAZDA MOTORS CORP.
  5. Remove the windshield washer hose A from the washer tank hook. (See WINDSHIELD WASHER HOSE A INSTALLATION NOTE .)
  6. Remove the windshield washer hose A from clips A and B.
  7. Disconnect the windshield washer hose B from the joint pipe A.

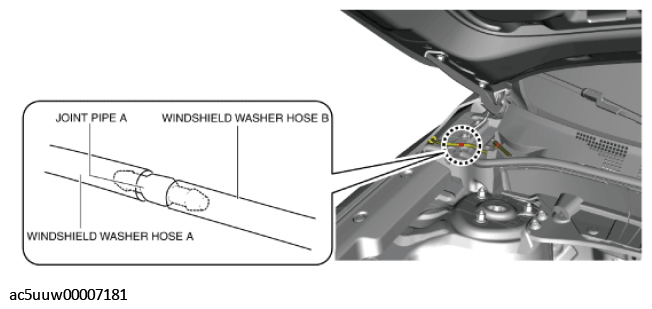

    Fig 2: Disconnecting Windshield Washer Hose B From Joint Pipe A
    G11426850Courtesy of MAZDA MOTORS CORP.
  8. Remove the windshield washer hose A.
  9. Install in the reverse order of removal.
