Washer Hose Installation Note

  1. When installing the washer hoses to the washer tank hooks, install them with the upper end of the marks aligned to the hooks.

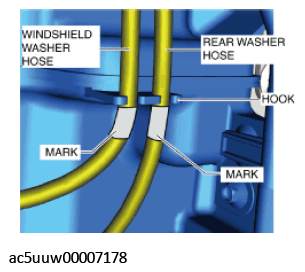

    Fig 1: Locating Washer Hoses To Washer Tank Hooks
    G11426848Courtesy of MAZDA MOTORS CORP.
