Rear Wiper Blade

  1. Move the rear wiper blade in the direction of the arrow (1) shown in the figure to detach the rear wiper blade from the rear wiper arm.

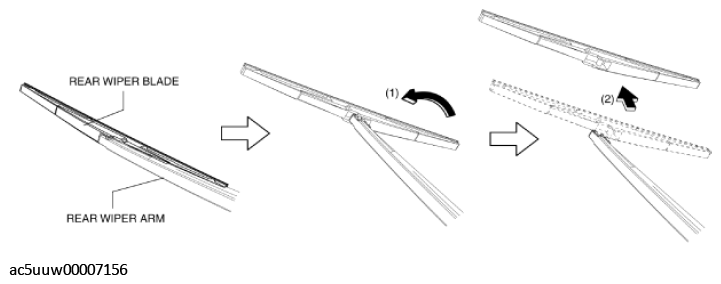

    Fig 1: Detaching Rear Wiper Blade From Rear Wiper Arm
    G11426820Courtesy of MAZDA MOTORS CORP.
  2. Move the rear wiper blade in the direction of the arrow (2) and remove it from the rear wiper arm in the direction of the arrow (3).
  3. Install in the reverse order of removal.
