Rear Washer Hose D: Notes

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Sunroof seaming welt (With sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION .)
    2. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    3. Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)
    4. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
    5. Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    6. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    7. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    8. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    9. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    10. Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
    11. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
    12. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    13. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
    14. Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    15. Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
    16. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
    17. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    18. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
    19. Bass box (with Bose ®) (See BASS-BOX REMOVAL/INSTALLATION .)
    20. Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION .)
    21. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    22. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
    23. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    24. Headliner (See HEADLINER REMOVAL/INSTALLATION .)

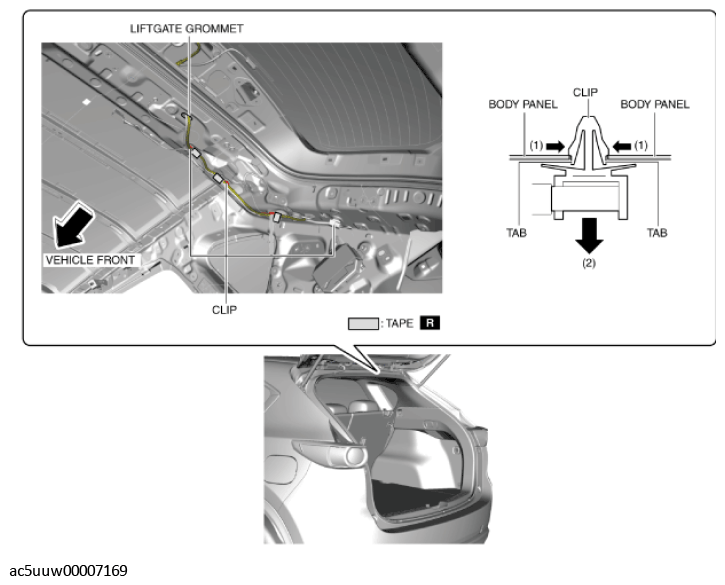

  3. While pressing the clip tabs in the direction of arrows (1) shown in the figure, pull the clip in the direction of arrow (2) to detach the clip tabs from the body panel.
    Fig 1: Pressing Clip Tabs From Rear Washer Hose D
    G11426804Courtesy of MAZDA MOTORS CORP.
  4. Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)

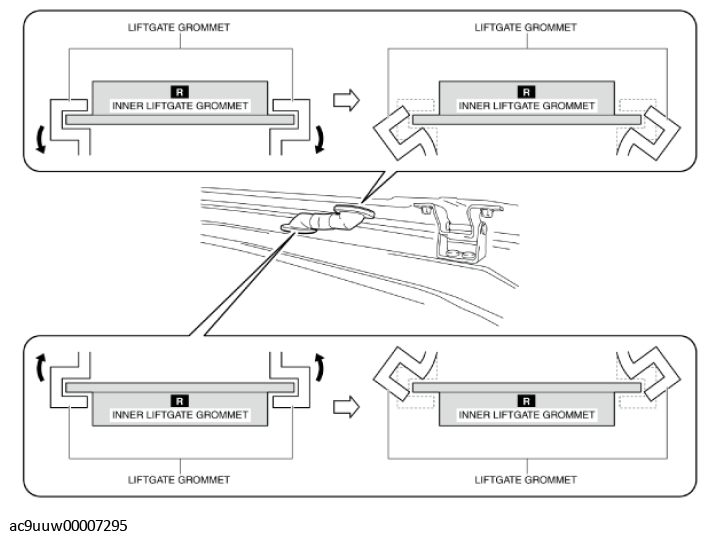

  5. Partially peel the liftgate grommet in the direction of arrows shown in the figure, and remove the liftgate grommet from the inner liftgate grommet.
    Fig 2: Removing Liftgate Grommet From Inner Liftgate Grommet
    G11426805Courtesy of MAZDA MOTORS CORP.

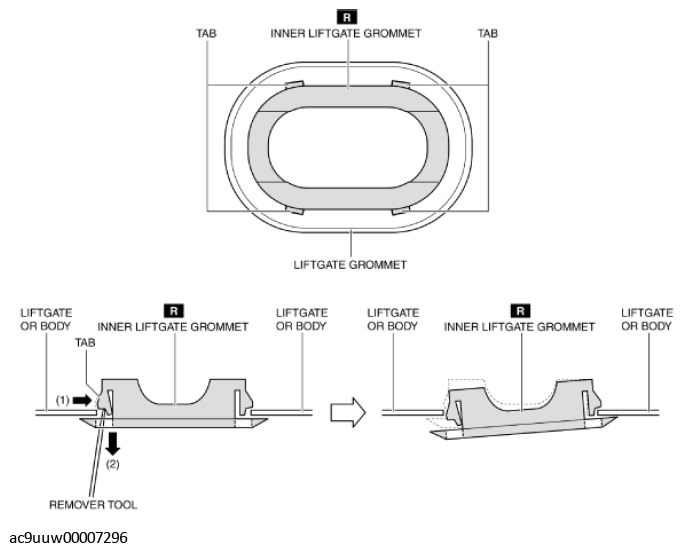

  6. While pressing the tab of the inner liftgate grommet in the direction of arrow (1) shown in the figure, pull the inner liftgate grommet in the direction of arrow (2) and detach the tab of the inner liftgate grommet from the liftgate or body.
    Fig 3: Detaching Tab Of Inner Liftgate Grommet From Liftgate Or Body
    G11426806Courtesy of MAZDA MOTORS CORP.
  7. Detach all the tabs of the inner liftgate grommet from the liftgate and remove the inner liftgate grommet.
  8. Remove the tape. (See REAR WASHER HOSE D INSTALLATION NOTE .)

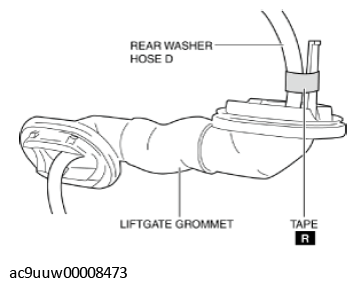

    Fig 4: Installing Rear Washer Hose D
    G11426807Courtesy of MAZDA MOTORS CORP.

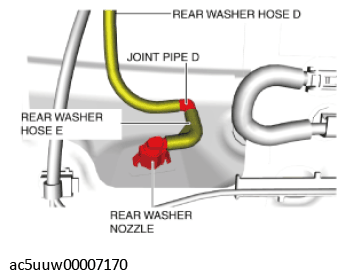

  9. Disconnect rear washer hose D from the joint pipe.
    Fig 5: Disconnecting Rear Washer Hose D From Joint Pipe
    G11426808Courtesy of MAZDA MOTORS CORP.
  10. Remove rear washer hose D.
  11. Install in the reverse order of removal.
