Rear Washer Hose A

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the front over fender (RH). (See FRONT OVER FENDER REMOVAL/INSTALLATION .)
  3. Remove the mudguard (RH). (See MUDGUARD REMOVAL/INSTALLATION .)
  4. Disconnect the rear washer hose A from the washer motor.

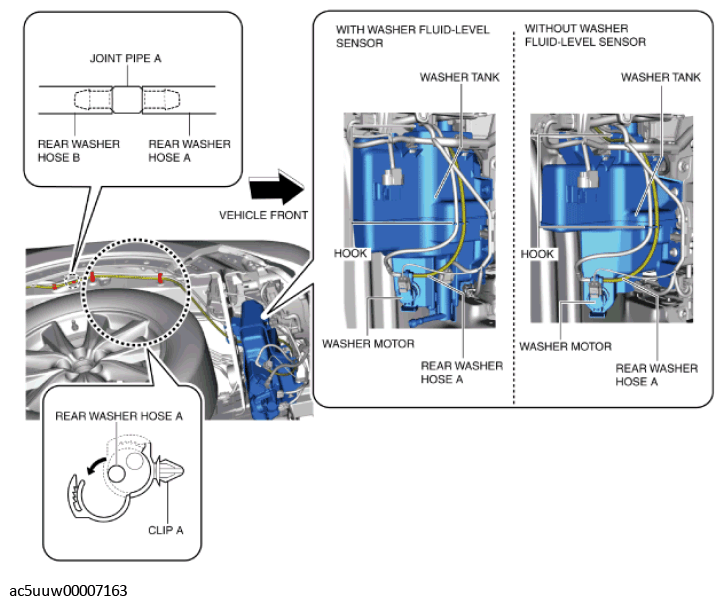

    Fig 1: Disconnecting Rear Washer Hose A From Washer Motor
    G11426798Courtesy of MAZDA MOTORS CORP.
  5. Remove the rear washer hose A from the washer tank hook.
  6. Remove the rear washer hose A from clips A.
  7. Disconnect the rear washer hose A from the joint pipe A and remove it.
  8. Disconnect the joint pipe A from the joint pipe A.
  9. Install in the reverse order of removal.
