No USB Audio Sound Output [Entertainment System [Without Center Display]]: Notes

DESCRIPTION AND POSSIBLE CAUSES

Description	NO USB AUDIO SOUND OUTPUT
	Radio, AUX audio, Bluetooth ® audio is output, but no USB sound
Possible Causes	USB device malfunction Connector poor contact or terminal damage Auxiliary jack/USB port malfunction Open circuit in wiring harness between the following terminals: Audio unit terminal 3A and auxiliary jack/USB port terminal UD Audio unit terminal 3B and auxiliary jack/USB port terminal UC Audio unit terminal 3C and auxiliary jack/USB port terminal UA Audio unit terminal 3D and auxiliary jack/USB port terminal UB Short to ground in wiring harness between the following terminals: Audio unit terminal 3A and auxiliary jack/USB port terminal UD Audio unit terminal 3B and auxiliary jack/USB port terminal UC Audio unit terminal 3C and auxiliary jack/USB port terminal UA Audio unit terminal 3D and auxiliary jack/USB port terminal UB Short to power supply in wiring harness between the following terminals: Audio unit terminal 3A and auxiliary jack/USB port terminal UD Audio unit terminal 3B and auxiliary jack/USB port terminal UC Audio unit terminal 3C and auxiliary jack/USB port terminal UA Audio unit terminal 3D and auxiliary jack/USB port terminal UB Audio unit malfunction

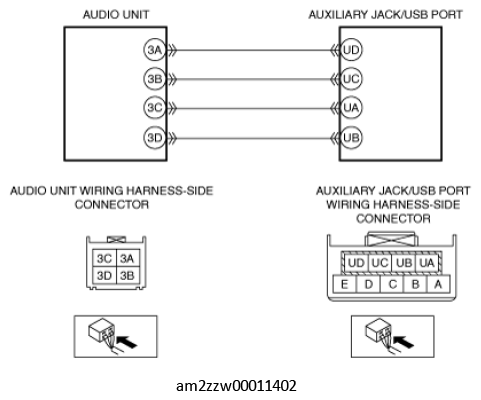

System Wiring Diagram
