No Aux Audio Sound Output [Entertainment System [Without Center Display]]: Notes

DESCRIPTION AND POSSIBLE CAUSES

Description	NO AUX AUDIO SOUND OUTPUT
	Radio, USB audio, Bluetooth ® audio is produced, but no AUX audio Noise interference occurs in AUX audio sound
Possible Causes	Effects of non-genuine, after-market electrical components External device malfunction Connector poor contact or terminal damage Open circuit in wiring harness between the following terminals: Audio unit terminal 2L and auxiliary jack/USB port terminal E Audio unit terminal 2K and auxiliary jack/USB port terminal D Audio unit terminal 2J and auxiliary jack/USB port terminal C Audio unit terminal 2I and auxiliary jack/USB port terminal B Auxiliary jack/USB port terminal A and body ground Short to ground in wiring harness between the following terminals: Audio unit terminal 2L and auxiliary jack/USB port terminal E Audio unit terminal 2K and auxiliary jack/USB port terminal D Audio unit terminal 2J and auxiliary jack/USB port terminal C Audio unit terminal 2I and auxiliary jack/USB port terminal B Short to power supply in wiring harness between the following terminals: Audio unit terminal 2L and auxiliary jack/USB port terminal E Audio unit terminal 2K and auxiliary jack/USB port terminal D Audio unit terminal 2J and auxiliary jack/USB port terminal C Audio unit terminal 2I and auxiliary jack/USB port terminal B Auxiliary jack/USB port malfunction Audio unit malfunction

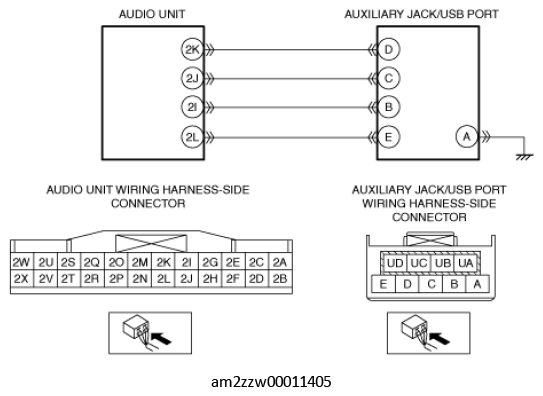

System Wiring Diagram
