Audio Unit Display Not Displayed [Entertainment System [Without Center Display]: Notes

DESCRIPTION AND POSSIBLE CAUSES

Description	AUDIO UNIT DISPLAY NOT DISPLAYED
	Does not display even with the audio unit power turned on
Possible Causes	Connector poor contact or terminal damage Open circuit in wiring harness between audio unit terminal 1W and body ground Audio unit malfunction

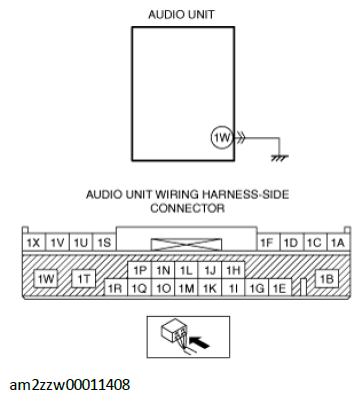

System Wiring Diagram
