Mazda
>>
2017
>>
CX-5 Grand Select, FWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Infotainment
>>
Symptom Troubleshooting - Entertainment System - With Center Display
>>
System Wiring Diagram [Entertainment System [With Center Display]]
>>
With Bose®
With Bose®

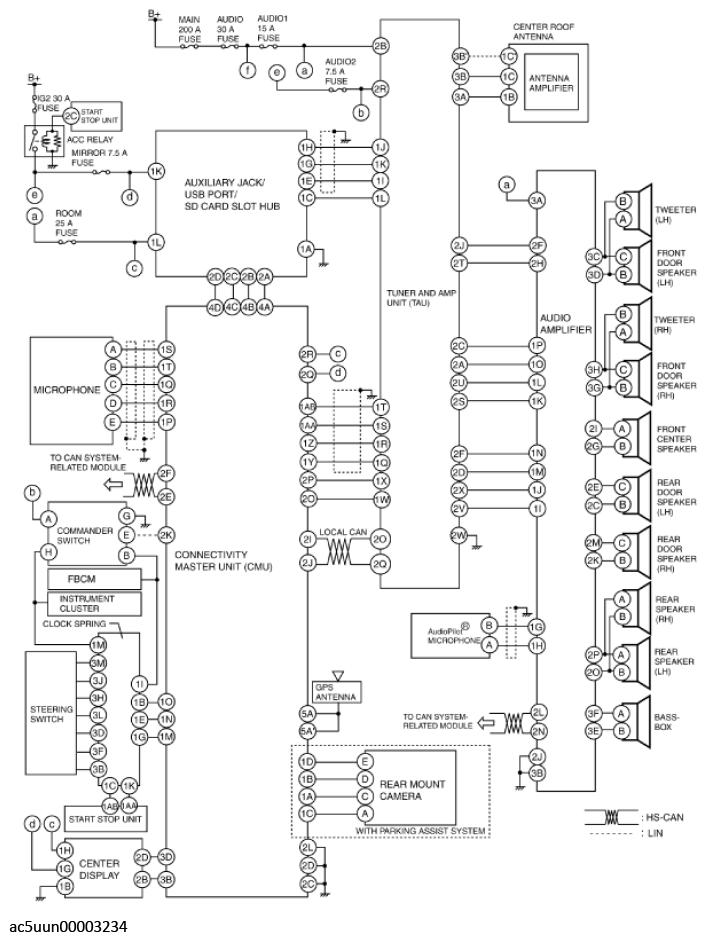

Fig 1: System Wiring Diagram (Entertainment System (With Center Display)) - With Bose
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
