Rear Mount Camera Image Not Clear/No Image On Screen [Entertainment System [With Center Display]]: Notes

DESCRIPTION AND POSSIBLE CAUSES

Description	REAR MOUNT CAMERA IMAGE NOT CLEAR/NO IMAGE ON SCREEN
	Navigation image is output, however, rear mount camera image is not output Poor reception from rear mount camera
Possible Causes	Effects of non-genuine, after-market electrical components Connector poor contact or terminal damage Rear mount camera malfunction Open circuit in wiring harness between the following terminals: CMU terminal 1B and rear mount camera terminal D CMU terminal 1C and rear mount camera terminal A CMU terminal 1D and rear mount camera terminal E Short to power supply in wiring harness between the following terminals: CMU terminal 1B and rear mount camera terminal D CMU terminal 1C and rear mount camera terminal A CMU terminal 1D and rear mount camera terminal E CMU malfunction

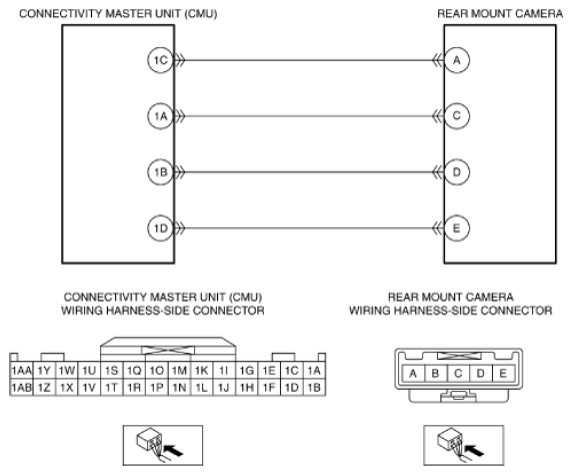

System Wiring Diagram
