Troubleshooting Procedure

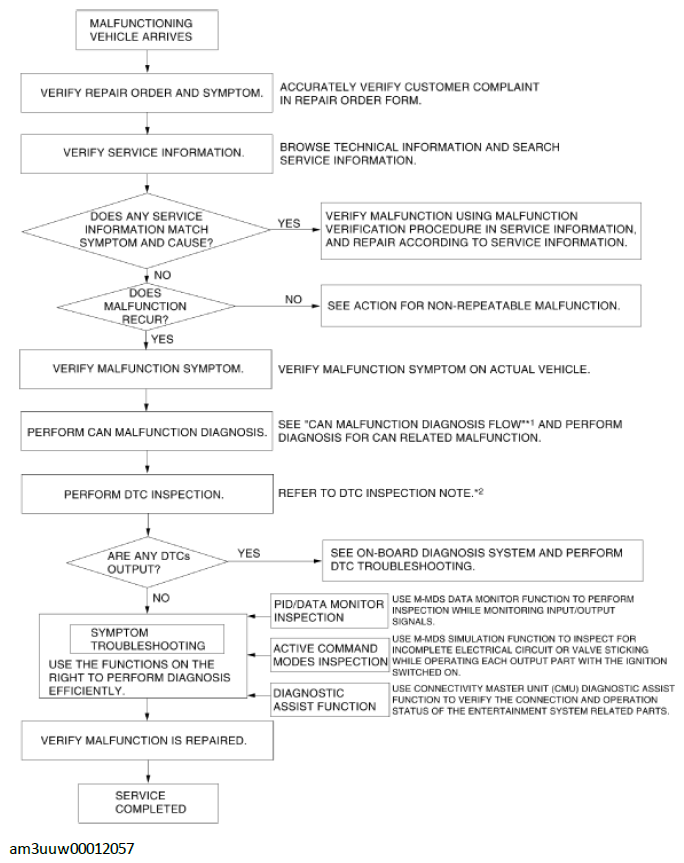

Fig 1: Vehicle Malfunction Troubleshooting Flow Chart

G11273615

Courtesy of MAZDA MOTORS CORP.

*1: (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW .)

*2: (See DTC INSPECTION NOTE .)
