DTC: 26-Er83; MICROPHONE CIRCUIT MALFUNCTION: Notes

DETECTION CONDITION AND POSSIBLE CAUSES

Description	Microphone circuit malfunction
Detection condition	Short to ground in microphone power supply circuit
Fail-safe	Not applicable

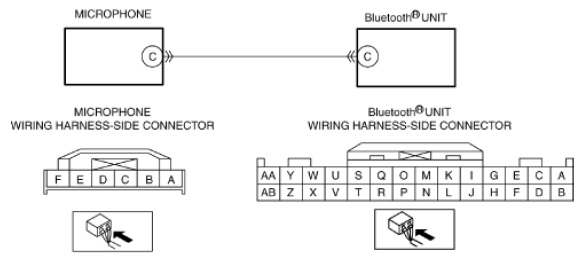

Possible cause	Microphone connector or terminal malfunction Bluetooth ® unit or terminal malfunction Short to ground in wiring harness between Bluetooth ® unit terminal C and microphone terminal C Microphone malfunction Bluetooth ® unit malfunction
