DTC: 26-Er82; MICROPHONE CIRCUIT MALFUNCTION: Notes

DETECTION CONDITION AND POSSIBLE CAUSES

Description	Microphone circuit malfunction
Detection condition	Short to power supply detected in microphone input circuit
Fail-safe	Not applicable

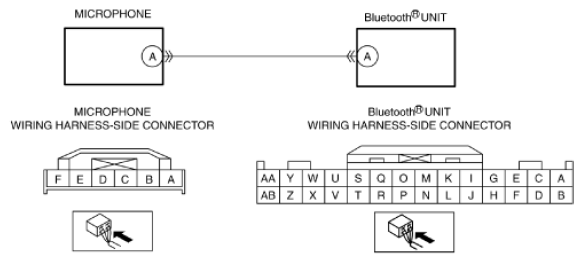

Possible cause	Microphone connector or terminal malfunction Bluetooth ® unit or terminal malfunction Short to power supply in wiring harness between Bluetooth ® unit terminal A and microphone terminal A Microphone malfunction Bluetooth ® unit malfunction
