On-Board Diagnostic Wiring Diagram [Active Driving Display]

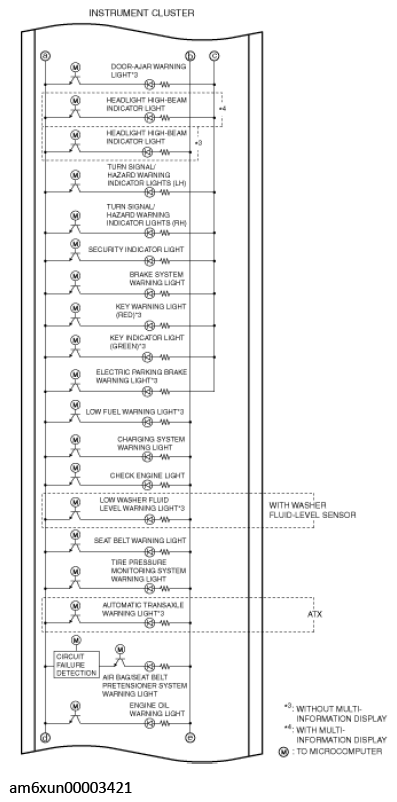

Fig 1: On-Board Diagnostic Wiring Diagram - Active Driving Display (1 Of 3)

Courtesy of MAZDA MOTORS CORP.

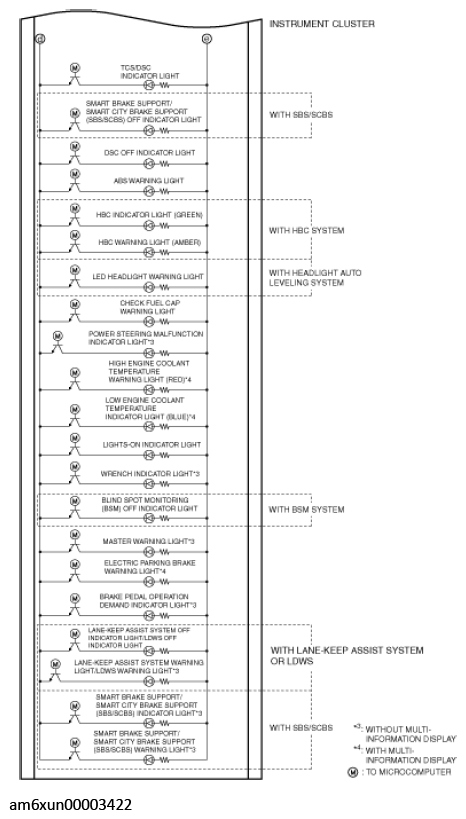

Fig 2: On-Board Diagnostic Wiring Diagram - Active Driving Display (2 Of 3)

Courtesy of MAZDA MOTORS CORP.

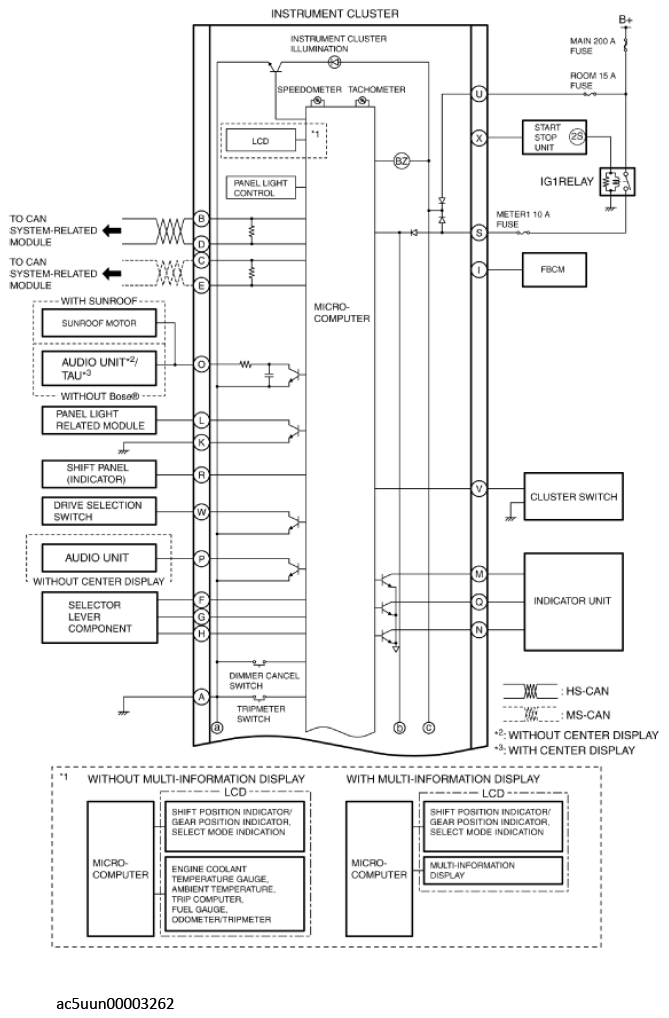

Fig 3: On-Board Diagnostic Wiring Diagram - Active Driving Display (3 Of 3)

Courtesy of MAZDA MOTORS CORP.
