On-Board Diagnostic - Active Driving Display System
>>
Foreword [Active Driving Display]
>>
Troubleshooting Procedure
Troubleshooting Procedure

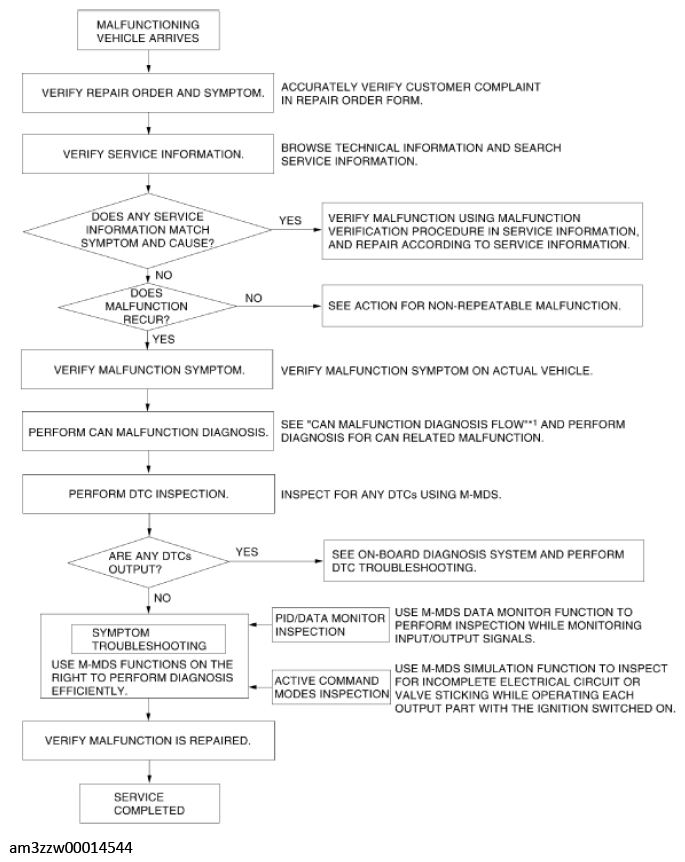

Fig 1: Vehicle Malfunction Troubleshooting Flow Chart
Courtesy of MAZDA MOTORS CORP.
*1: (See
CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW
.)
