Front Center Speaker Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the center speaker grille. (See SPEAKER GRILLE REMOVAL/INSTALLATION .)
  3. Remove the screws.

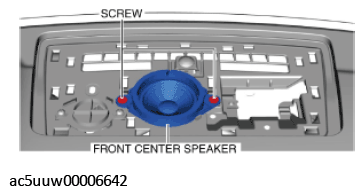

    Fig 1: Locating Front Center Speaker Screw
    G11426078Courtesy of MAZDA MOTORS CORP.
  4. Remove the front center speaker.
  5. Disconnect the front center speaker connector.
  6. Install in the reverse order of removal.
