Connectivity Master Unit (CMU) Disassembly/Assembly
>>
Short-cord Assembly Note
Short-cord Assembly Note
When assembling the short-cord, press it into the groove of the connectivity master unit (CMU).

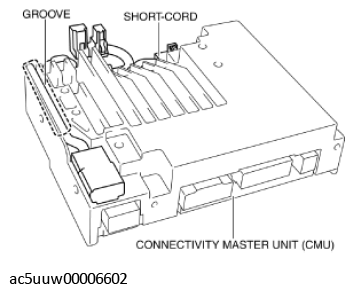

Fig 1: Pressing Groove Connectivity Master Unit
Courtesy of MAZDA MOTORS CORP.
