Auxiliary Jack/USB Port Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the console up. (See REAR CONSOLE REMOVAL/INSTALLATION .)
  3. While pressing the tabs of the auxiliary jack/USB port component in the direction of arrows (1) shown in the figure, move the auxiliary jack/USB port component in the direction of arrow (2) and detach the tabs of the auxiliary jack/USB port component from the console-up.

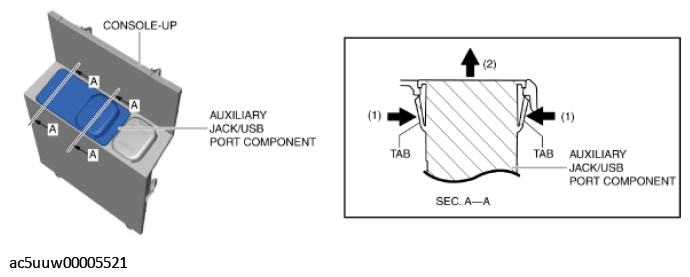

    Fig 1: Pressing Tabs Of Auxiliary Jack/Usb Port Component
    G11426044Courtesy of MAZDA MOTORS CORP.
  4. While pressing the auxiliary jack/USB port tabs in the direction of the arrows (1) shown in the figure, press the auxiliary jack/USB port in the direction of the arrow (2) to detach the auxiliary jack/USB port tabs from the hole cover.

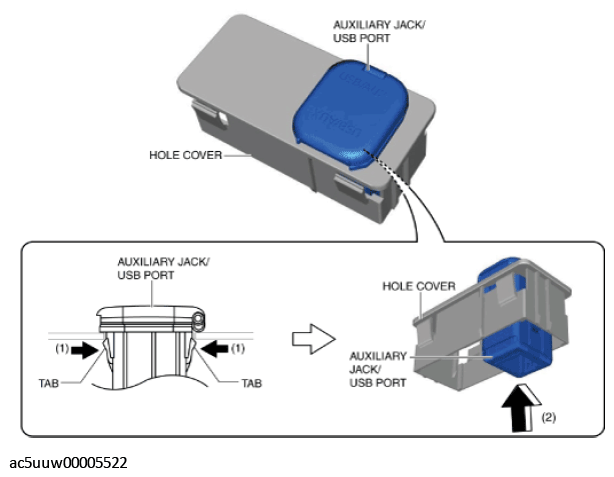

    Fig 2: Pressing Tabs Of Auxiliary Jack/Usb Port Component
    G11426045Courtesy of MAZDA MOTORS CORP.
  5. Remove the auxiliary jack/USB port.
  6. Install in the reverse order of removal.
