Audio Pilot® MICROPHONE REMOVAL/INSTALLATION

NOTE:
  • Audio Pilot® is a registered trademark of Bose® Corporation.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Disconnect the connector.

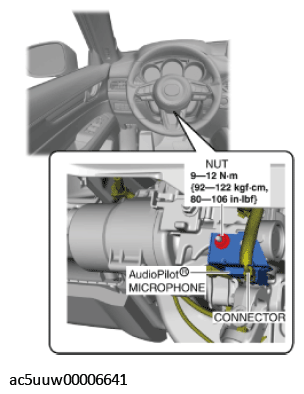

    Fig 1: Locating Audiopilot Microphone With Torque Specifications
    G11426047Courtesy of MAZDA MOTORS CORP.
  3. Remove the nut.
  4. Remove the Audio Pilot® microphone.
  5. Install in the reverse order of removal.
