Antenna Feeder No. 2 Removal/Installation: Installation

Vehicles without sunroof

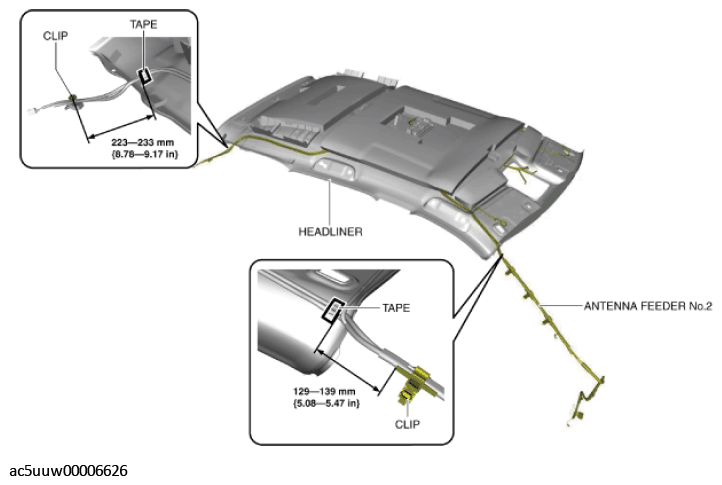

Fig 1: Align Antenna Feeder No. 1 With Dimension (Without Sunroof)

Courtesy of MAZDA MOTORS CORP.

Vehicles with sunroof

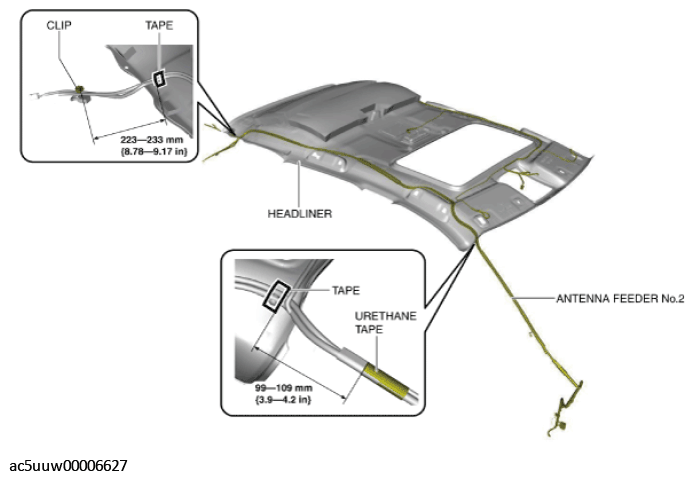

Fig 2: Align Antenna Feeder No. 1 With Dimension (With Sunroof)

Courtesy of MAZDA MOTORS CORP.

1. Headliner (See HEADLINER REMOVAL/INSTALLATION .)
2. Head restraint
3. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
4. Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
5. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
6. Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION .)
7. Bass-box (With Bose ®) (See BASS-BOX REMOVAL/INSTALLATION .)
8. Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION .)
9. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
10. B-pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION .)
11. Upper anchor installation bolt on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
12. Adjust anchor cover on the front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION .)
13. B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .)
14. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
15. Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION .)
16. Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
17. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
18. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
19. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
20. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
21. Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
22. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
23. Front map light (See FRONT MAP LIGHT REMOVAL/INSTALLATION .)
24. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
25. Sunroof seaming welt (With sunroof system) (See SUNROOF UNIT REMOVAL/INSTALLATION .)
