Rear Turn Light Bulb Removal/Installation
>>
Screw Installation Note
Screw Installation Note
Install the screws in the order of (1) and (2).

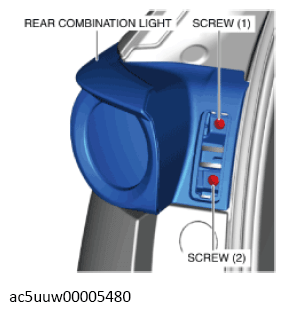

Fig 1: Rear Combination Light And Screws
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
