Using light switch

Function Initial setting Setting contents Control module
The daytime running light (DRL) system function can be set. On (Daytime running light (DRL) illumination) Off (Daytime running light (DRL) non-illumination)/On (Daytime running light (DRL) illumination) Front body control module (FBCM)
NOTE:
  • Because each procedure needs to be completed within a predetermined period of time, refer to the following procedure before performing the set up work, and then verify the content of the work and the time limit.

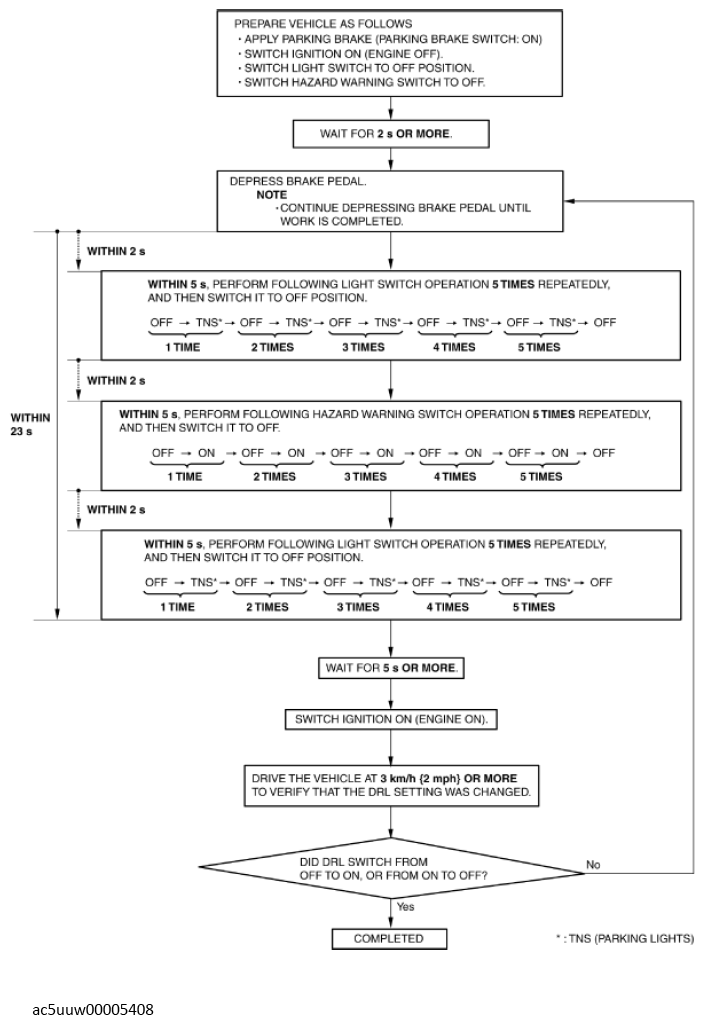

Fig 1: Daytime Running Light Illumination/Non-Illumination Setting Flow Chart
G11428154Courtesy of MAZDA MOTORS CORP.
