License Plate Light Bulb Removal/Installation

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Insert the remover tool into the service hole at the position shown in the figure.

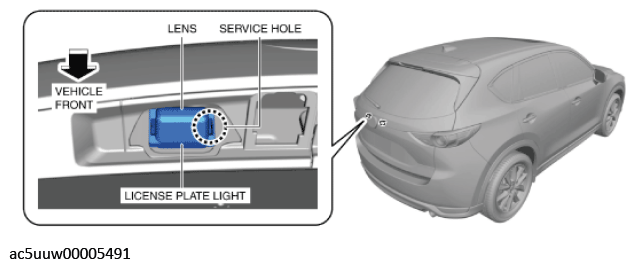

Fig 1: Remover Tool Insertion Position At Service Hole Of Licensce Plate Light
Courtesy of MAZDA MOTORS CORP.
Move the remover tool in the direction of the arrow shown in the figure to widen the lens and detach the license plate light tab from the lens.

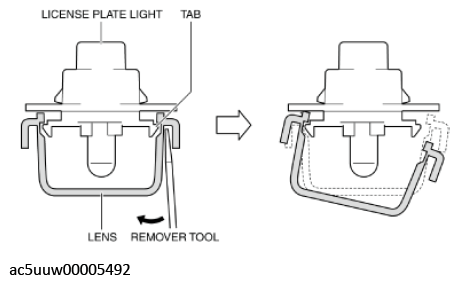

Fig 2: Detcaching Licence Plate Light Tab From Lens Using Remover Tool
Courtesy of MAZDA MOTORS CORP.
Remove the lens.

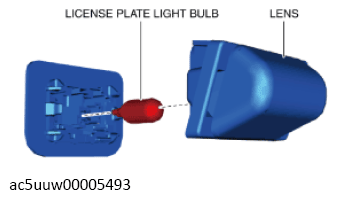

Fig 3: Removing Lens And Licence Plate Light Bulb
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- If there is oil or dirt on the surface of the light bulb, excessive heat will build up and the life of the light bulb will be shortened. If the light bulb glass area is touched, wipe off any dirt using a soft cloth dampened with detergent diluted in water (approx. 5 %).
Remove the license plate light bulb.
Install in the reverse order of removal.
