Headlight Leveling Switch Inspection

NOTE:

• The headlight leveling switch is integrated with the cluster switch.
• For the headlight leveling switch removal/installation, refer to "CLUSTER SWITCH REMOVAL/INSTALLATION" (See CLUSTER SWITCH REMOVAL/INSTALLATION .)

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
2. Remove the following parts:
   1. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
   2. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
   3. Cluster switch (See CLUSTER SWITCH REMOVAL/INSTALLATION .)
3. Verify that the resistance between the cluster switch terminals is as indicated in the table.

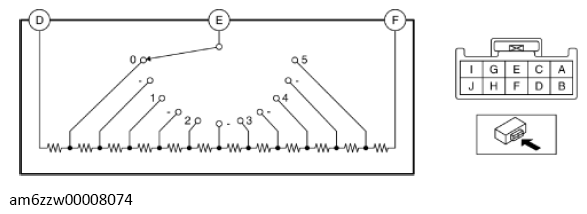

Fig 1: Inspecting Resistance Between Cluster Switch Terminals

Courtesy of MAZDA MOTORS CORP.

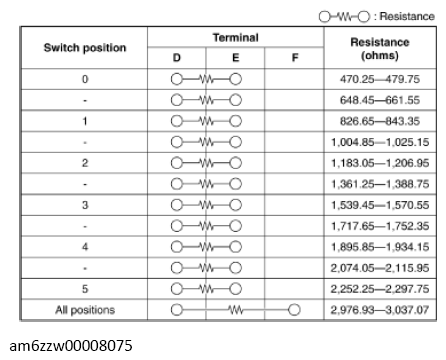

Fig 2: Cluster Switch Terminals Resistance Chart

Courtesy of MAZDA MOTORS CORP.

• If not as indicated in the table, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION .)
