Front Map Light Bulb Removal/Installation

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
CAUTION:
- When inserting the remover tool in the gap between the front map light and the lens, the remover tool could interfere with the front map light and scratch or damage it. When removing the lens from the front map light, apply protective tape to the front map light.

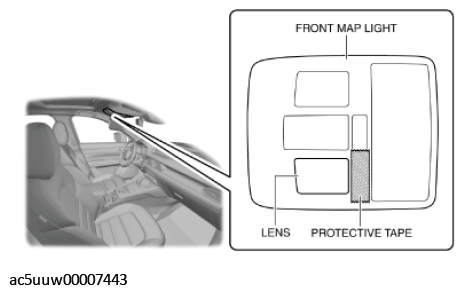

To prevent scratches or damage, affix protective tape to the position shown in the figure.

Fig 1: Front Map Light Protective Tape Applying Position
Courtesy of MAZDA MOTORS CORP.
Press the lens to assure a space for inserting the remover tool.

Fig 2: Pressing Front Map Light Lens
Courtesy of MAZDA MOTORS CORP.
Insert the remover tool into the gap between the front map light and the lens shown in the figure.

Fig 3: Inserting Remover Tool Into Gap Between Front Map Light And Lens
Courtesy of MAZDA MOTORS CORP.

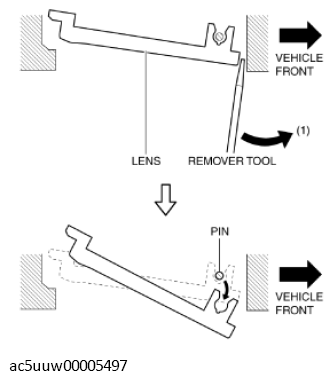

Move the remover tool in the direction of arrow (1) shown in the figure, pull out the lens from the pin.

Fig 4: Pulling Out Lens From Pin
Courtesy of MAZDA MOTORS CORP.
Remove the lens.
Press the spring of the front map light in the direction of arrow (1) shown in the figure and disengage the front map light bulb from the spring.

Fig 5: Pressing Spring Of Front Map Light
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- If there is oil or dirt on the surface of the light bulb, excessive heat will build up and the life of the light bulb will be shortened. If the light bulb glass area is touched, wipe off any dirt using a soft cloth dampened with detergent diluted in water (approx. 5 %).

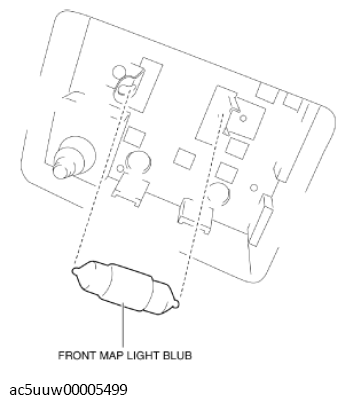

Remove the front map light bulb.

Fig 6: Removing Front Map Light Bulb
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
