Front Combination Light Removal/Installation
>>
Bolt Installation Note
Bolt Installation Note
Install the bolts in the order of (1), (2) and (3).

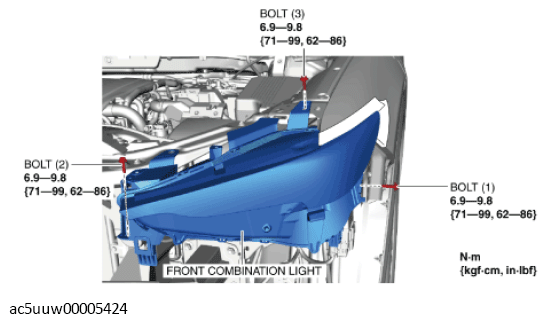

Fig 1: Installing Front Combination Light Bolts
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
