Front Combination Light Disassembly/Assembly: Notes
- Disassemble in the order shown in the figure.

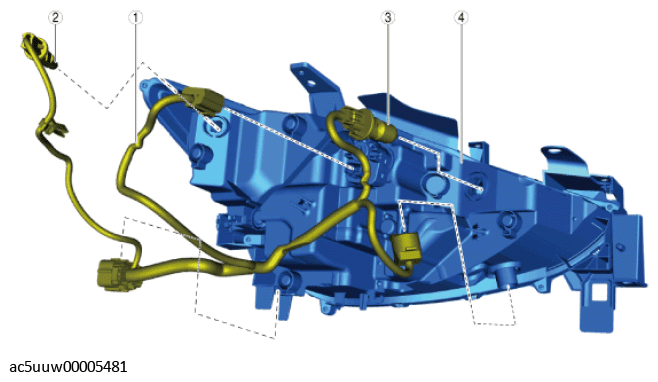

With headlight manual leveling system
Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION1 Short cord
(See Short Cord Removal Note )2 Front side marker light bulb
(See FRONT SIDE MARKER LIGHT BULB REMOVAL/INSTALLATION .)3 Front turn light/parking light bulb

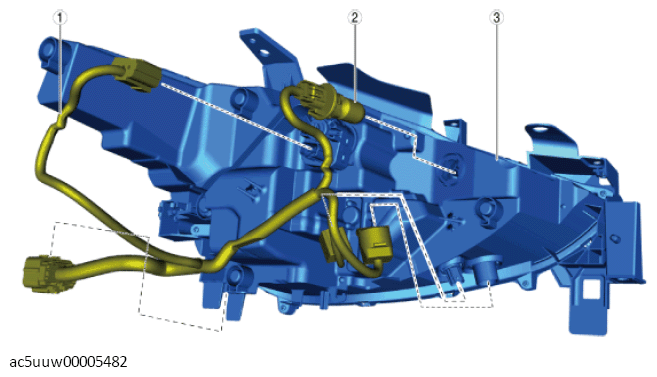

(See FRONT TURN LIGHT BULB REMOVAL/INSTALLATION .)4 Front combination light With headlight auto leveling system
Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION1 Short cord
(See Short Cord Removal Note )2 Front turn light/parking light bulb
(See FRONT TURN LIGHT BULB REMOVAL/INSTALLATION .)3 Front combination light - Assemble in the reverse order of disassembly.
