Foreword [Blind Spot Monitoring (BSM) System]
>>
Troubleshooting Procedure
Troubleshooting Procedure

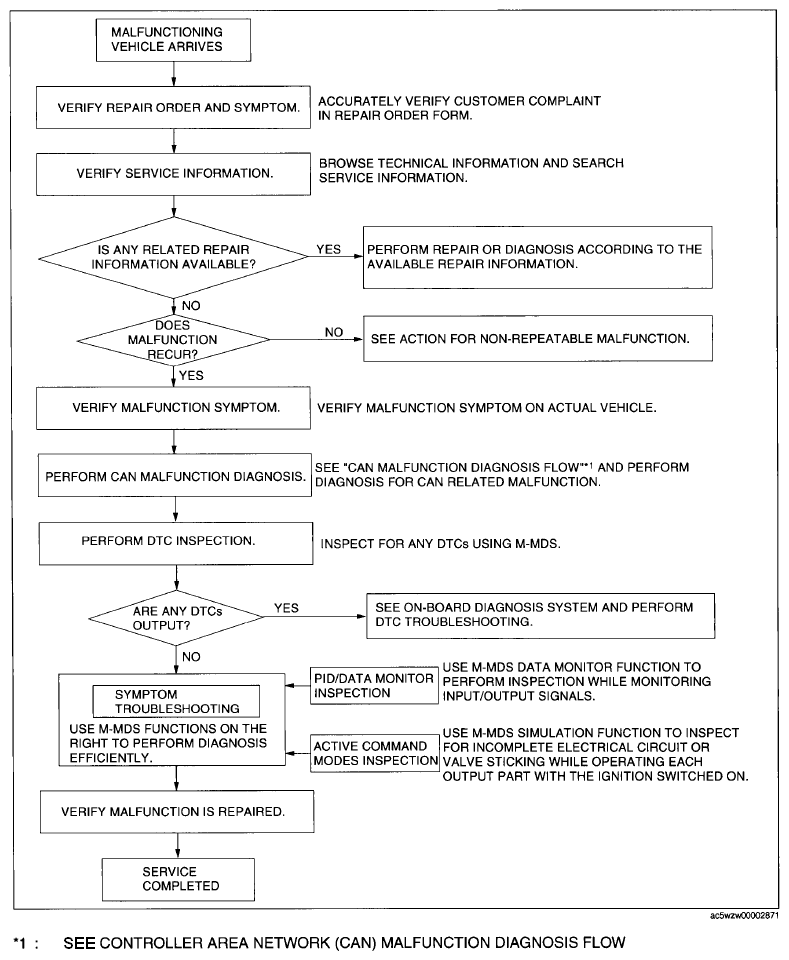

Fig 1: Vehicle Malfunction Complaint By Customer - Troubleshooting Flowchart
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
