Symptom Troubleshooting - Blind Spot Monitoring System
>>
Blind Spot Monitoring (BSM) Wiring Diagram [Blind Spot Monitoring (BSM) System]
Blind Spot Monitoring (BSM) Wiring Diagram [Blind Spot Monitoring (BSM) System]

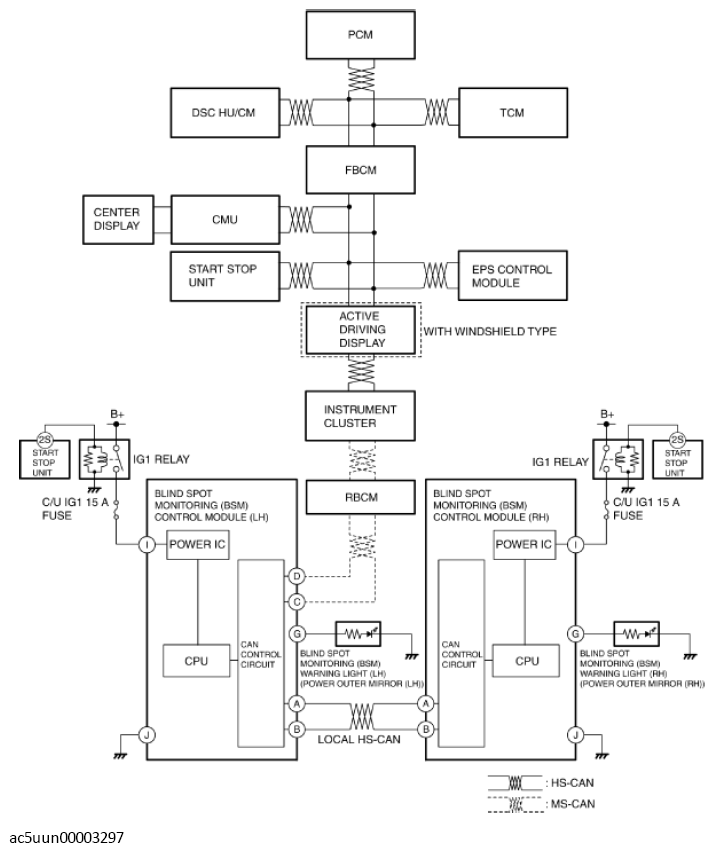

Fig 1: Blind Spot Monitoring (BSM) Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
