CX-5 Grand Select, FWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Drivers Assistance Systems - ADAS
>>
On-Board Diagnostic - Radar Unit
>>
On-Board Diagnostic Wiring Diagram [Radar Unit]
On-Board Diagnostic Wiring Diagram [Radar Unit]

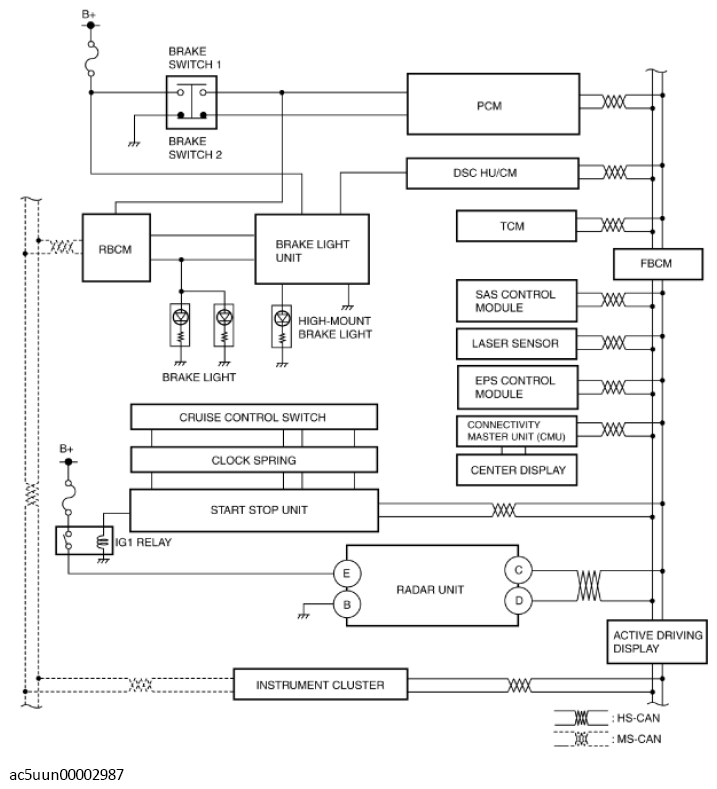

Fig 1: Radar Unit - On-Board Diagnostic Wiring Diagram
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
