Troubleshooting Procedure

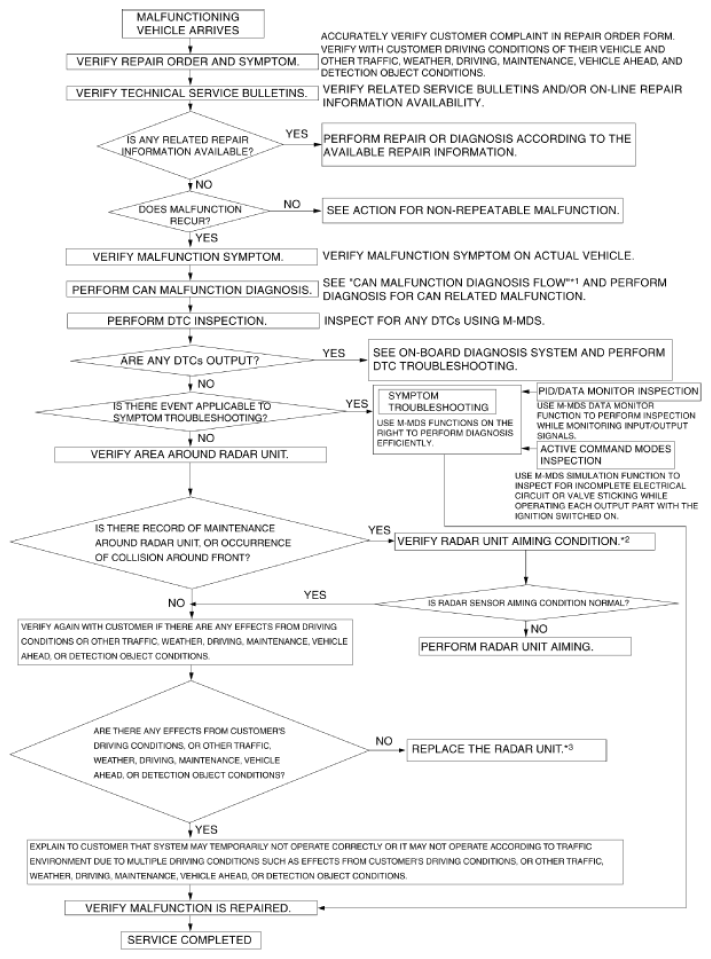

Fig 1: Vehicle Malfunction Complaint By Customer - Troubleshooting Flowchart

G11432127

Courtesy of MAZDA MOTORS CORP.

*1: (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW .)

*2: (See RADAR UNIT AIMING .)

*3:(See RADAR UNIT REMOVAL/INSTALLATION .)
