On-Board Diagnostic - Forward Sensing Camera
>>
Foreword [Forward Sensing Camera (FSC)]
>>
Troubleshooting Procedure
Troubleshooting Procedure

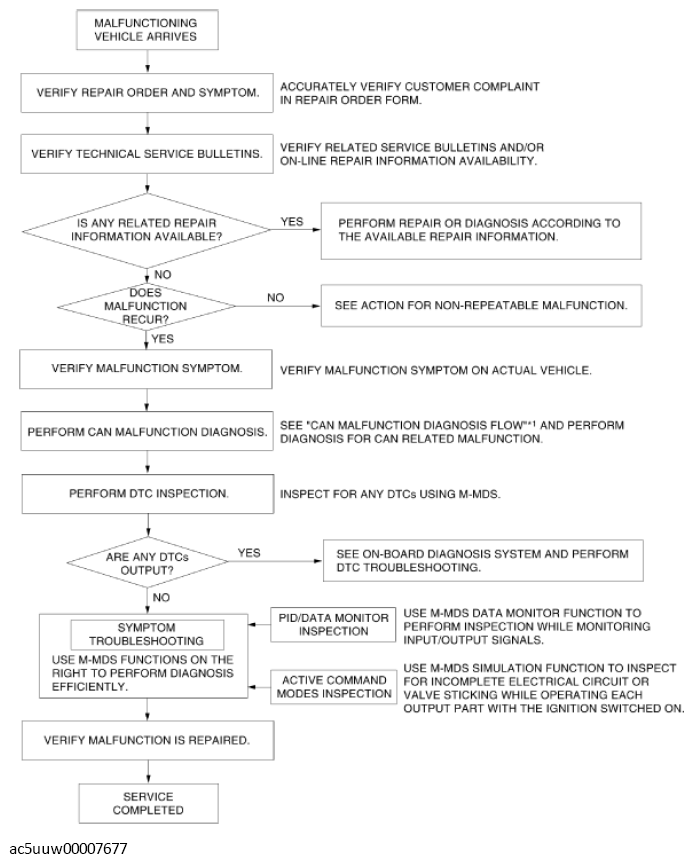

Fig 1: Vehicle Malfunction Complaint By Customer - Troubleshooting Flowchart
Courtesy of MAZDA MOTORS CORP.
*1: (See
CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW
.)
