Lane-Keep Assist System Location Index

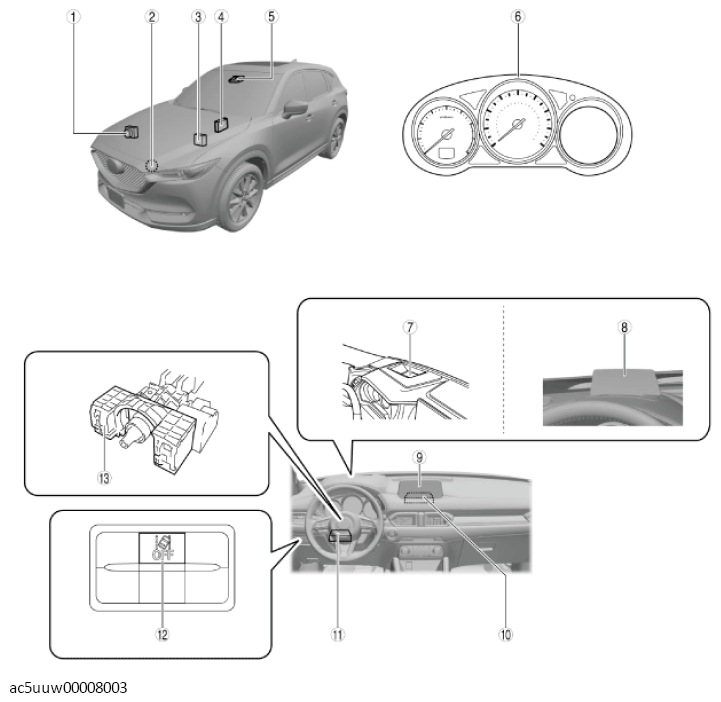

Fig 1: Lane-Keep Assist System Parts Location

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	DSC HU/CM (See DSC HU/CM REMOVAL/INSTALLATION .) (See DSC HU/CM INSPECTION .) (See DSC RELATED PARTS SENSOR INITIALIZATION PROCEDURE .)
2	TCM (See CONTROL VALVE BODY REMOVAL/INSTALLATION .) (See TCM CONFIGURATION .)
3	PCM (See PCM REMOVAL/INSTALLATION .) (See PCM INSPECTION .) (See BAROMETRIC PRESSURE (BARO) SENSOR REMOVAL/INSTALLATION .)) (See BAROMETRIC PRESSURE (BARO) SENSOR INSPECTION .) (See PCM CONFIGURATION (USING READ/WRITE FUNCTION) .)) (See PCM CONFIGURATION (USING AS-BUILT DATA) .)
4	Front body control module (FBCM) (See FRONT BODY CONTROL MODULE (FBCM) REMOVAL/INSTALLATION .) (See FRONT BODY CONTROL MODULE (FBCM) INSPECTION .) (See FRONT BODY CONTROL MODULE (FBCM) CONFIGURATION (USING READ/WRITE FUNCTION) .) (See FRONT BODY CONTROL MODULE (FBCM) CONFIGURATION (USING AS-BUILT DATA) .)
5	Forward sensing camera (FSC) (See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION .) (See FORWARD SENSING CAMERA (FSC) AIMING .) (See FORWARD SENSING CAMERA (FSC) CONFIGURATION (USING READ/WRITE FUNCTION) .) (See FORWARD SENSING CAMERA (FSC) CONFIGURATION (USING AS-BUILT DATA) .) (See FORWARD SENSING CAMERA (FSC) SYSTEM OPERATION RECORD .)
6	Instrument cluster (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .) (See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY .) (See INSTRUMENT CLUSTER INSPECTION .) (See INSTRUMENT CLUSTER CONFIGURATION (USING READ/WRITE FUNCTION) .) (See INSTRUMENT CLUSTER CONFIGURATION (USING AS-BUILT DATA) .) (See INSTRUMENT CLUSTER OPERATION RECORD .) (See INSTRUMENT CLUSTER PERSONALIZATION FEATURES SETTING PROCEDURE .) (See INSTRUMENT CLUSTER DATA RESET PROCEDURE .)
7	Active driving display (Windshield type) (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION .) (See ACTIVE DRIVING DISPLAY INSPECTION .)
8	Active driving display (Auto flip-up type) (See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION .) (See ACTIVE DRIVING DISPLAY INSPECTION .)
9	Center display (See CENTER DISPLAY REMOVAL/INSTALLATION .) (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE .)
10	Connectivity master unit (CMU) (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION .) (See CONNECTIVITY MASTER UNIT (CMU) DISASSEMBLY/ASSEMBLY .) (See Bluetooth® PAIRING PROCEDURE .) (See MAINTENANCE MONITOR OPERATION PROCEDURE .)
11	EPS control module (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .) (See EPS CONTROL MODULE INSPECTION .)
12	Lane-keep assist system off switch (See LANE-KEEP ASSIST SYSTEM OFF SWITCH REMOVAL/INSTALLATION .) (See LANE-KEEP ASSIST SYSTEM OFF SWITCH INSPECTION .)
13	Start stop unit (See START STOP UNIT REMOVAL/INSTALLATION .) (See START STOP UNIT INSPECTION .) (See START STOP UNIT CONFIGURATION (USING READ/WRITE FUNCTION) .) (See START STOP UNIT CONFIGURATION (USING AS-BUILT DATA) .) (See SECURITY AND LOCKS PERSONALIZATION FEATURES SETTING PROCEDURE .)
