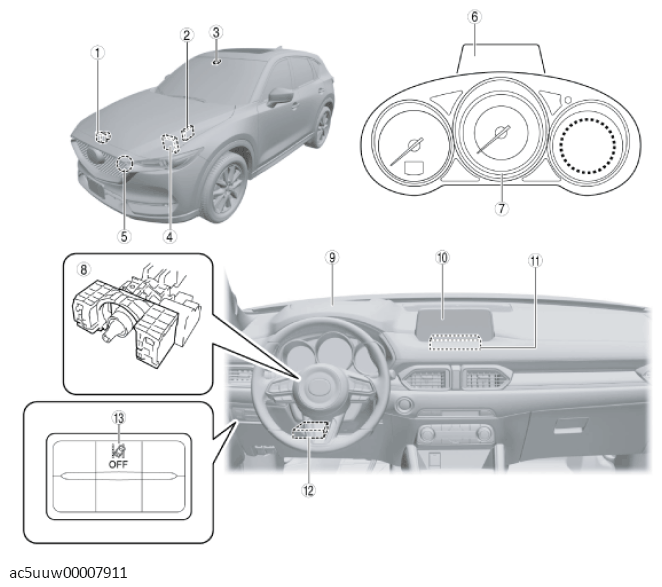

| 1 |
DSC HU/CM
(See DSC HU/CM REMOVAL/INSTALLATION
.)
(See DSC HU/CM INSPECTION
.)
(See DSC RELATED PARTS SENSOR INITIALIZATION PROCEDURE
.) |
| 2 |
FBCM
(See FRONT BODY CONTROL MODULE (FBCM) REMOVAL/INSTALLATION
.)
(See FRONT BODY CONTROL MODULE (FBCM) INSPECTION
.)
(See FRONT BODY CONTROL MODULE (FBCM) CONFIGURATION (USING READ/WRITE FUNCTION)
.)
(See FRONT BODY CONTROL MODULE (FBCM) CONFIGURATION (USING AS-BUILT DATA)
.) |
| 3 |
Forward sensing camera (FSC)
(See FORWARD SENSING CAMERA (FSC) REMOVAL/INSTALLATION .)
(See FORWARD SENSING CAMERA (FSC) AIMING .)
(See FORWARD SENSING CAMERA (FSC) CONFIGURATION (USING READ/WRITE FUNCTION) .)
(See FORWARD SENSING CAMERA (FSC) CONFIGURATION (USING AS-BUILT DATA) .)
(See FORWARD SENSING CAMERA (FSC) SYSTEM OPERATION RECORD .) |
| 4 |
PCM
(See
PCM REMOVAL/INSTALLATION
.)
(See
PCM INSPECTION
.)
(See
PCM CONFIGURATION (USING READ/WRITE FUNCTION)
.))
(See
PCM CONFIGURATION (USING AS-BUILT DATA)
.) |
| 5 |
TCM
(See
CONTROL VALVE BODY REMOVAL/INSTALLATION
.)
(See
TCM CONFIGURATION
.) |
| 6 |
Active driving display (combiner screen type)
(See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION
.)
(See ACTIVE DRIVING DISPLAY INSPECTION
.) |
| 7 |
Instrument cluster
(See INSTRUMENT CLUSTER REMOVAL/INSTALLATION
.)
(See INSTRUMENT CLUSTER DISASSEMBLY/ASSEMBLY
.)
(See INSTRUMENT CLUSTER INSPECTION
.)
(See INSTRUMENT CLUSTER CONFIGURATION (USING READ/WRITE FUNCTION)
.)
(See INSTRUMENT CLUSTER CONFIGURATION (USING AS-BUILT DATA)
.)
(See INSTRUMENT CLUSTER PERSONALIZATION FEATURES SETTING PROCEDURE
.)
(See INSTRUMENT CLUSTER DATA RESET PROCEDURE
.) |
| 8 |
Start stop unit
(See START STOP UNIT REMOVAL/INSTALLATION
.)
(See START STOP UNIT INSPECTION
.)
(See START STOP UNIT CONFIGURATION (USING READ/WRITE FUNCTION)
.)
(See START STOP UNIT CONFIGURATION (USING AS-BUILT DATA)
.) |
| 9 |
Active driving display (windshield screen type)
(See ACTIVE DRIVING DISPLAY REMOVAL/INSTALLATION
.)
(See ACTIVE DRIVING DISPLAY INSPECTION
.) |
| 10 |
Center display
(See CENTER DISPLAY REMOVAL/INSTALLATION
.)
(See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE
.) |
| 11 |
Connectivity master unit (CMU)
(See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION
.)
(See CONNECTIVITY MASTER UNIT (CMU) DISASSEMBLY/ASSEMBLY
.) |
| 12 |
EPS control module
(See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION
.)
(See EPS CONTROL MODULE INSPECTION
.) |
| 13 |
LDWS switch
(See LDWS SWITCH REMOVAL/INSTALLATION .)
(See LDWS SWITCH INSPECTION .) |
