On-Board Diagnostic Wiring Diagram [Rear Body Control Module (RBCM)]

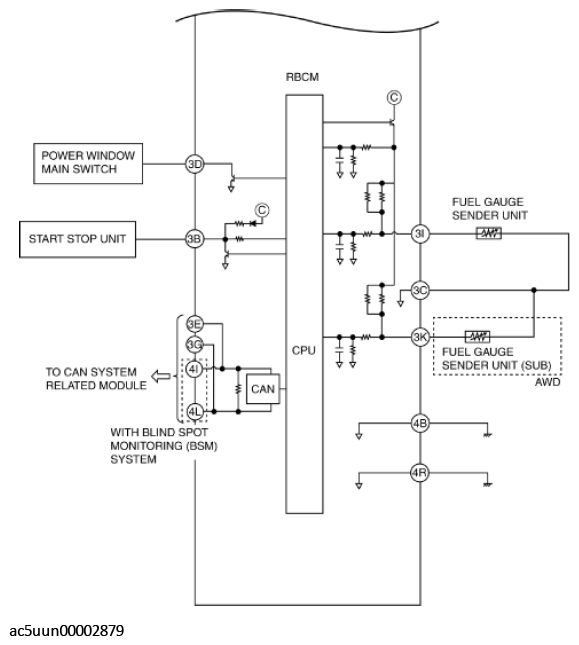

Fig 1: RBCM On-Board Diagnostic Wiring Diagram (1 Of 4)

Courtesy of MAZDA MOTORS CORP.

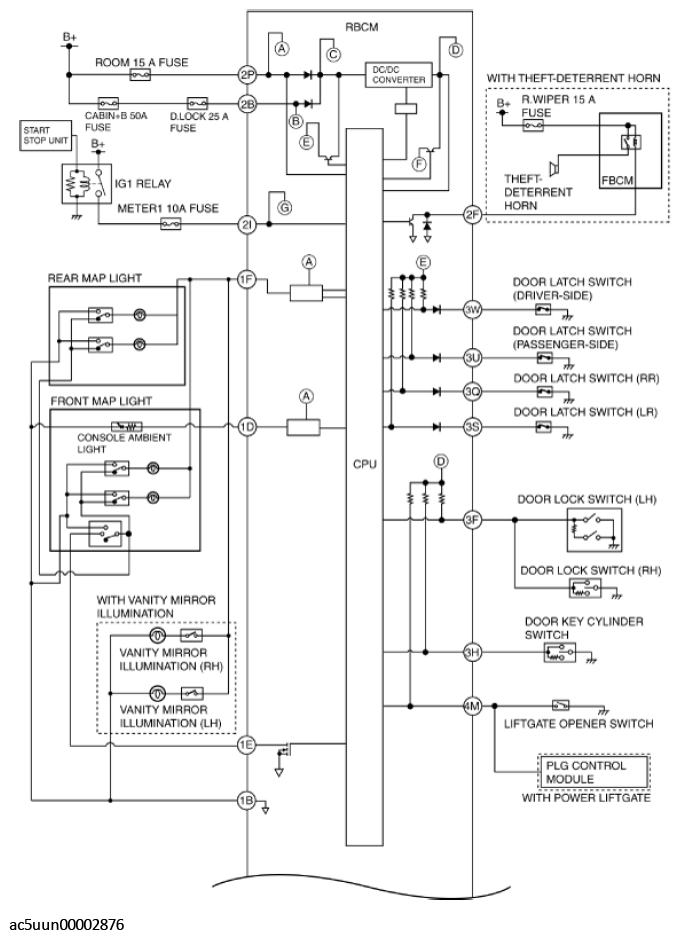

Fig 2: RBCM On-Board Diagnostic Wiring Diagram (2 Of 4)

Courtesy of MAZDA MOTORS CORP.

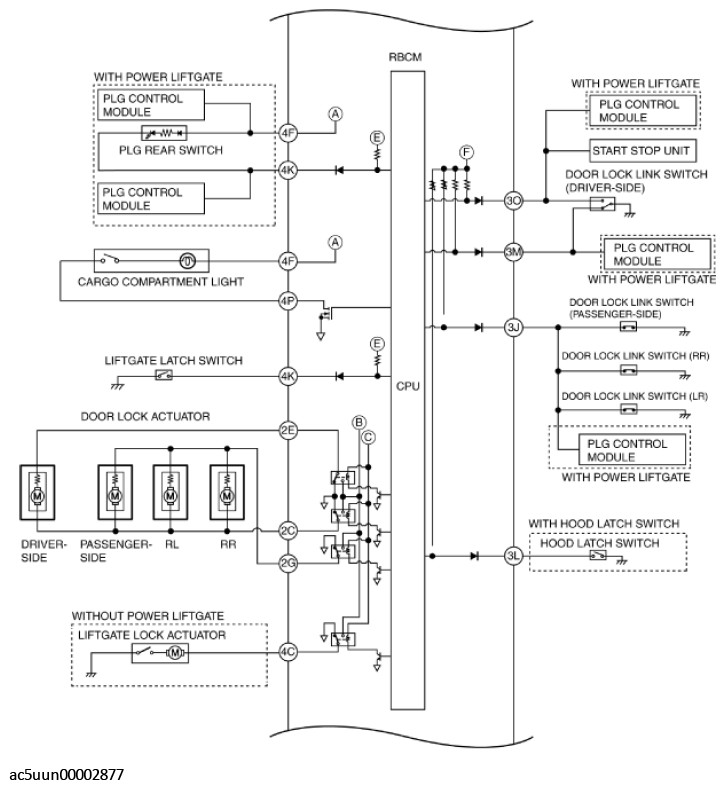

Fig 3: RBCM On-Board Diagnostic Wiring Diagram (3 Of 4)

Courtesy of MAZDA MOTORS CORP.

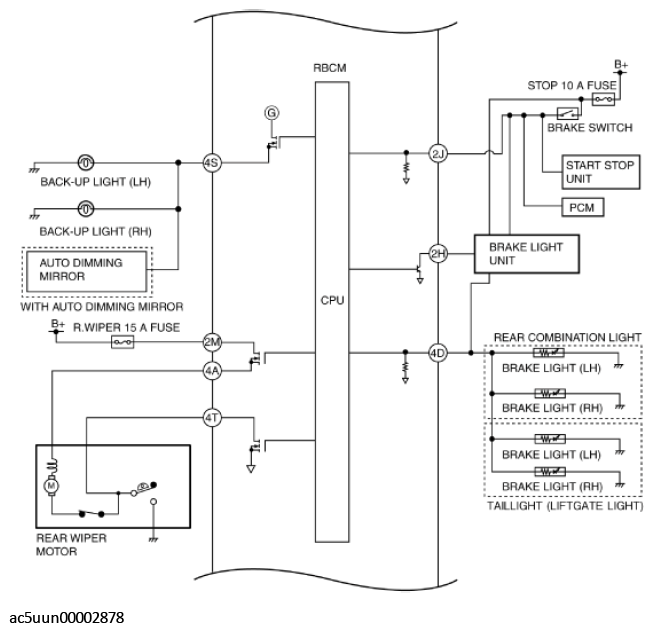

Fig 4: RBCM On-Board Diagnostic Wiring Diagram (4 Of 4)

Courtesy of MAZDA MOTORS CORP.
