DTC B126A-13; Front Door Lock-Link Switch (LH) Lock Circuit Malfunction: Notes

DETECTION CONDITION AND POSSIBLE CAUSES

Description	Front door lock-link switch (LH) lock circuit malfunction
Detection condition	Rear body control module (RBCM) detects an open circuit in the front door lock-link switch (LH) lock circuit with the front door lock-link switch (LH) locked.
Fail-safe function	Not applicable

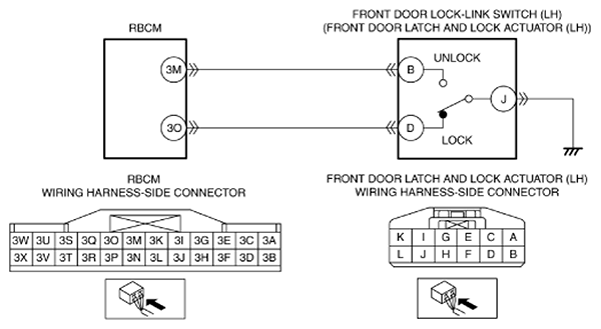

Possible cause	Front door latch and lock actuator (LH) connector or terminal malfunction Open circuit in wiring harness between front door latch and lock actuator (LH) terminal J and body ground Front door lock-link switch (LH) malfunction Rear body control module (RBCM) connector or terminal malfunction Open circuit in wiring harness between rear body control module (RBCM) terminal 3O and front door latch and lock actuator (LH) terminal D Rear body control module (RBCM) malfunction
