DTC B11EA-11; Rear Door Latch Switch (RH) Circuit Malfunction: Notes

DETECTION CONDITION AND POSSIBLE CAUSES

Description	Rear door latch switch (RH) circuit malfunction
Detection condition	Rear body control module (RBCM) detects a short to ground in the rear door latch switch (RH) circuit with the rear door (RH) closed (rear door latch switch (RH) off).
Fail-safe function	Not applicable

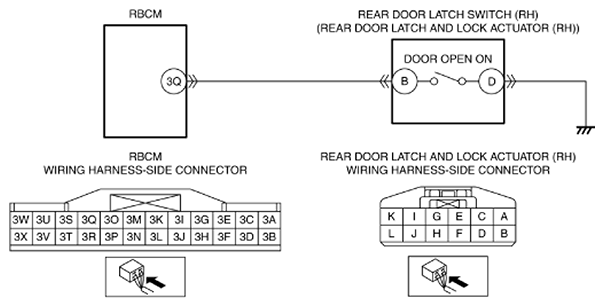

Possible cause	Rear door latch and lock actuator (RH) connector or terminal malfunction Rear door latch switch (RH) malfunction Rear body control module (RBCM) connector or terminal malfunction Short to ground in wiring harness between rear body control module (RBCM) terminal 3Q and rear door latch and lock actuator (RH) terminal B Rear body control module (RBCM) malfunction
