DTC B11DA-16; Front Door Key Cylinder Switch (LH) Circuit Malfunction: Notes

DETECTION CONDITION AND POSSIBLE CAUSES

Description	Front door key cylinder switch (LH) circuit malfunction
Detection condition	Rear body control module (RBCM) detects the front door key cylinder switch (LH) circuit voltage of 4 V or less with the front door key cylinder switch (LH) off.
Fail-safe function	Not applicable

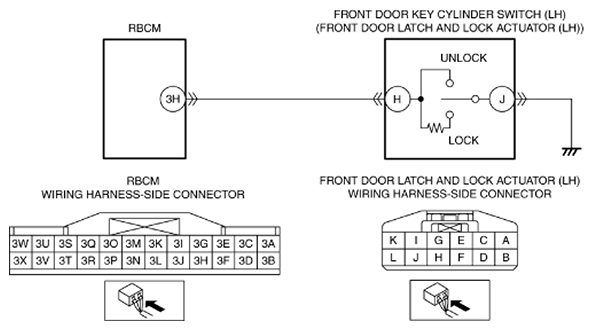

Possible cause	Front door latch and lock actuator (LH) connector or terminal malfunction Front door key cylinder switch (LH) malfunction Rear body control module (RBCM) connector or terminal malfunction Short to ground in wiring harness between rear body control module (RBCM) terminal 3H and front door latch and lock actuator (LH) terminal H. Rear body control module (RBCM) malfunction
