DTC B1178-11; Liftgate Latch Switch Circuit Malfunction: Notes

DETECTION CONDITION AND POSSIBLE CAUSES

Description	Liftgate latch switch circuit malfunction
Detection condition	Rear body control module (RBCM) detects short to ground in liftgate latch switch circuit with the liftgate closed (liftgate latch switch off).
Fail-safe function	Not applicable

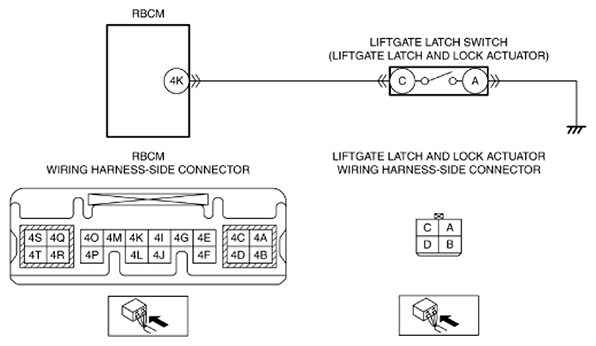

Possible cause	Liftgate latch and lock actuator connector or terminal malfunction Liftgate latch switch malfunction Rear body control module (RBCM) connector or terminal malfunction Short to ground in wiring harness between rear body control module (RBCM) terminal 4K and liftgate latch and lock actuator terminal C Rear body control module (RBCM) malfunction
