DTC B1175-11; Front Door Latch Switch (LH) Circuit Malfunction: Notes

DETECTION CONDITION AND POSSIBLE CAUSES

Description	Front door latch switch (LH) circuit malfunction
Detection condition	Rear body control module (RBCM) detects a short to ground in the front door latch switch (LH) circuit with the front door (LH) closed (front door latch switch (LH) off).
Fail-safe function	Not applicable

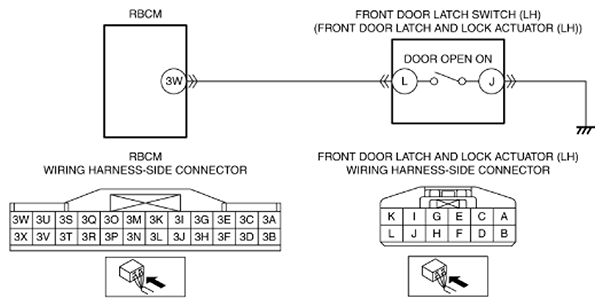

Possible cause	Front door latch and lock actuator (LH) connector or terminal malfunction Front door latch switch (LH) malfunction Rear body control module (RBCM) connector or terminal malfunction Short to ground in wiring harness between rear body control module (RBCM) terminal 3W and front door latch and lock actuator (LH) terminal L Rear body control module (RBCM) malfunction
