DTC B1172-11; Front Door Lock-Link Switch (LH) Unlock Circuit Malfunction: Notes

DETECTION CONDITION AND POSSIBLE CAUSES

Description	Front door lock-link switch (LH) unlock circuit malfunction
Detection condition	Rear body control module (RBCM) detects a short to ground in the front door lock-link switch (LH) unlock circuit with the front door lock-link switch (LH) locked.
Fail-safe function	Not applicable

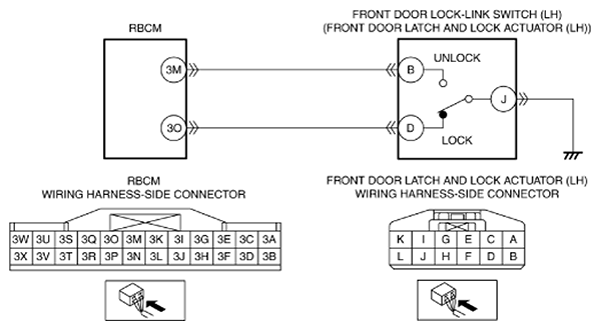

Possible cause	Front door latch and lock actuator (LH) connector or terminal malfunction Front door lock-link switch (LH) malfunction Rear body control module (RBCM) connector or terminal malfunction Short to ground in wiring harness between rear body control module (RBCM) terminal 3M and front door latch and lock actuator (LH) terminal B Rear body control module (RBCM) malfunction
