DTC B1079-13; Hood Latch Switch Circuit Malfunction: Notes

DETECTION CONDITION AND POSSIBLE CAUSES

Description	Hood latch switch circuit malfunction
Detection condition	Rear body control module (RBCM) detects an open circuit in hood latch switch circuit.
Fail-safe function	Not applicable

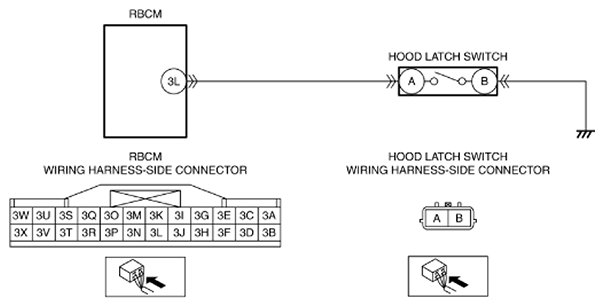

Possible cause	Hood latch switch connector or terminal malfunction Open circuit in wiring harness between hood latch switch terminal B and body ground Hood latch switch malfunction Rear body control module (RBCM) connector or terminal malfunction Open circuit in wiring harness between rear body control module (RBCM) terminal 3L and hood latch switch terminal A Rear body control module (RBCM) malfunction
