DTC U3006-13; Power Supply Circuit Malfunction: Notes

DETECTION CONDITION AND POSSIBLE CAUSES

Description	Power supply circuit malfunction
Detection condition	Power liftgate (PLG) control module detects an open circuit in the power supply circuit for 1 s or more with the ignition switched off.
Fail-safe	Stops the power liftgate (PLG) system operation.

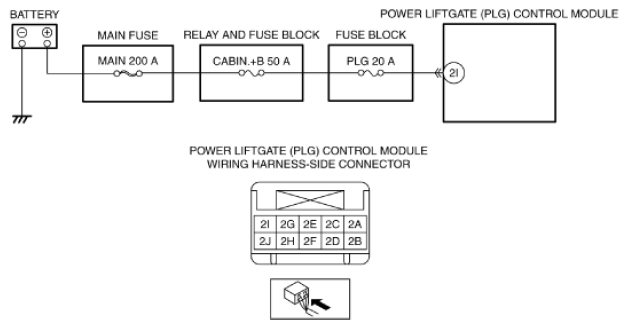

Possible cause	DTCs are stored in the PCM. Battery malfunction Generator malfunction Power liftgate (PLG) control module connector or terminal malfunction Power liftgate (PLG) control module power supply circuit malfunction Short to ground in wiring harness between MAIN 200 A fuse and power liftgate (PLG) control module terminal 2I PLG 20 A fuse malfunction CABIN.+B 50 A fuse malfunction Open circuit in wiring harness between battery positive terminal and power liftgate (PLG) control module terminal 2I Power liftgate (PLG) control module malfunction
