Troubleshooting Procedure: Notes

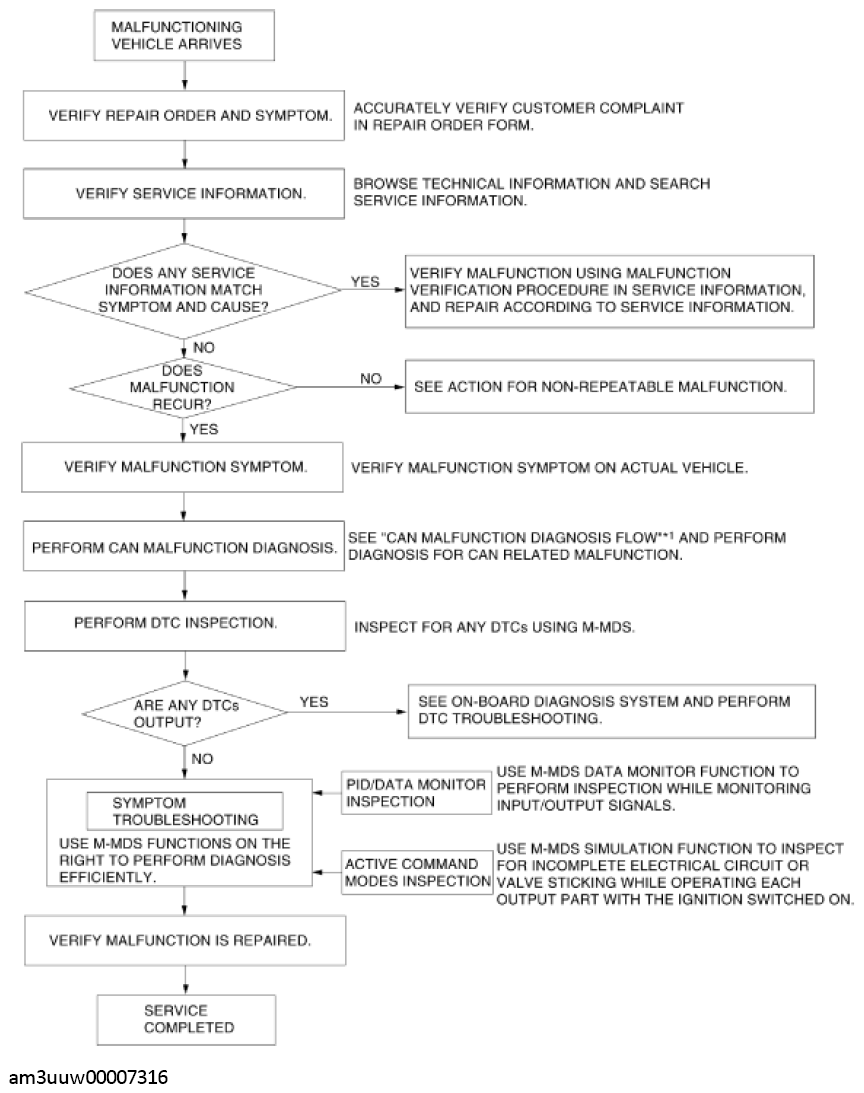

Fig 1: Troubleshooting Procedure Flowchart

G11432050

Courtesy of MAZDA MOTORS CORP.

*1: (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW .)
