Determining Short To Ground Location (Ms-Can): Notes

CAUTION:

• Perform the following malfunction diagnosis only when it is diagnosed with a short to ground by CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW .)

System Wiring Diagram

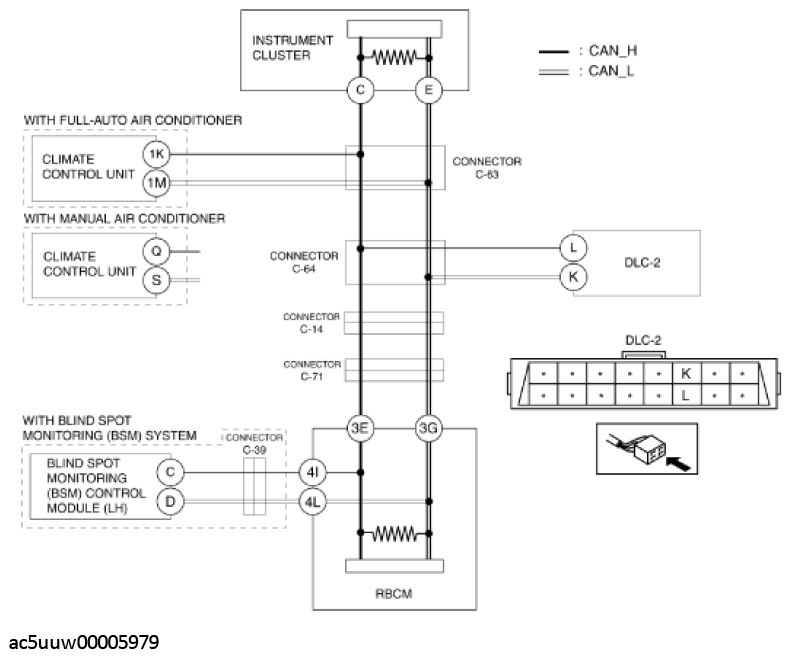

Fig 1: Short To Ground Location (MS-CAN)

Courtesy of MAZDA MOTORS CORP.
