Determining Short To Ground Location (HS-Can): Notes

CAUTION:

• Perform the following malfunction diagnosis only when it is diagnosed with a short to ground by CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW. (See CONTROLLER AREA NETWORK (CAN) MALFUNCTION DIAGNOSIS FLOW .)

System Wiring Diagram

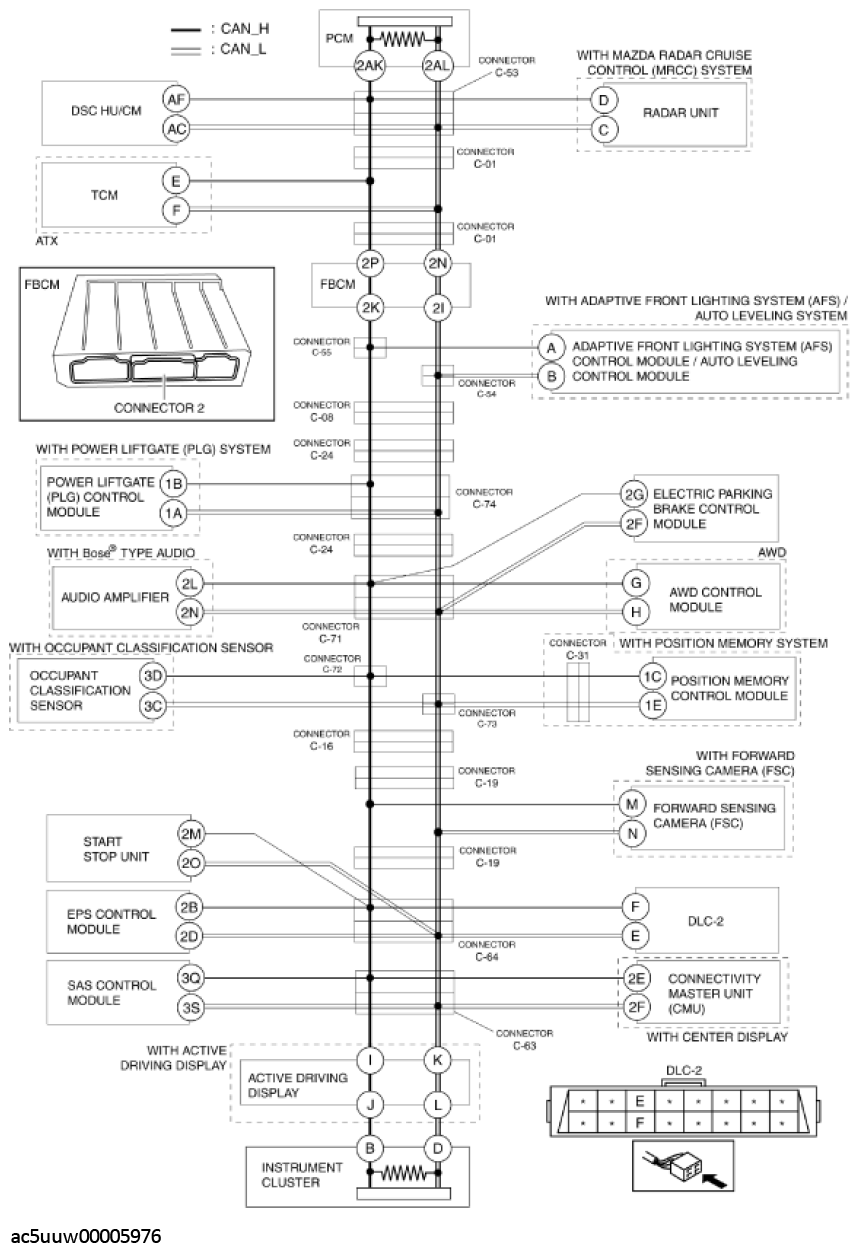

Fig 1: PCM System Wiring Diagram

Courtesy of MAZDA MOTORS CORP.
